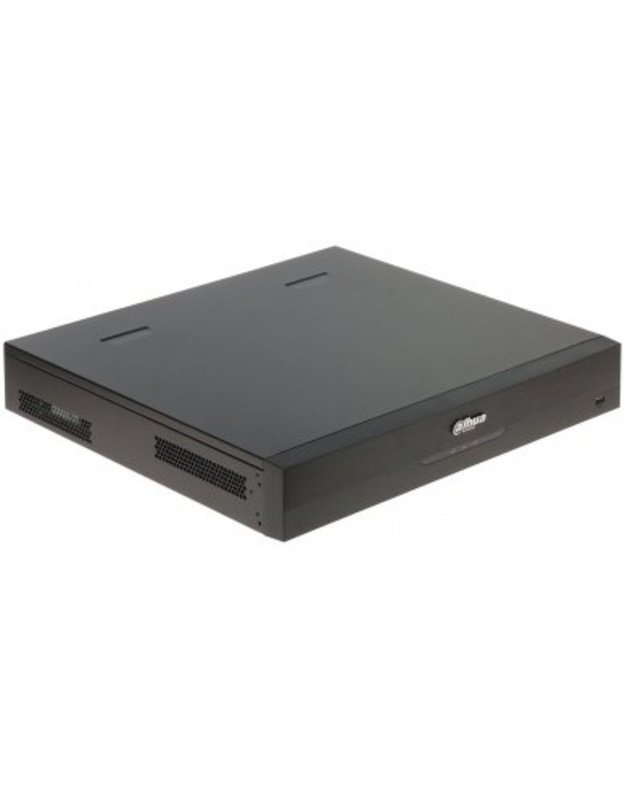

Tinklinis įrašymo įrenginys NVR Dahua WizSense NVR5432-EI
Tinklinis įrašymo įrenginys NVR Dahua WizSense NVR5432-EI
- Tipas: Tinklinis įrašymo įrenginys (NVR)
- Modelis: Dahua NVR5432-EI
- Kanalų skaičius: 32
- Duomenų srautas: 384 Mbps IN/OUT
- Maksimali raiška: Iki 32 Mpix per kanalą
- Technologija: WizSense
- Veidų atpažinimas: Iki 20 veidų
- Nuotraukų saugojimas: Iki 20 000 nuotraukų
- Signalizacijos įvestys/išvestys: Taip
- Garso įvestis/išvestis: Taip
- Vaizdo išvestys: 2x VGA, 2x HDMI
- Kompresija: H.265+
- Pažangi aptikimo technologija: SMD Plus
- Kietieji diskai: 4 HDD (iki 20 TB)
- Pagrindinis
- Pagrindinis procesorius Industrial-grade processor
- Operacinė sistema Embedded Linux
- Operacinė sąsaja Web, Local GUI
- AI įrašymo įrenginiu Face detection face recognition perimeter protection SMD Plus
- AI pagal kamerąFace detection face recognition video metadata (human, motor vehicles, and non-motor vehicles) perimeter protection SMD Plus stereo analysis crowd distribution people counting ANPR vehicle density heat map
- AcuPick AI by Camera + RecorderMax. 32-channel, 1 combined event per channel/s
- Perimeter Performance AI by Recorder (Number of Channels)4 channels, 10 IVS rules for each channel
- Perimeter Performance of AI by Camera (Number of Channels)All channels (16 targets/s)
- Veido atributai Gender age group glasses expressions face mask beard
- Face Detection Performance of AI by Recorder (Number of Channels)2 channels (up to 12 face images/s each channel)
- Face Detection Performance of AI by Camera (Number of Channels)16 channels
- Face Database CapacityUp to 20 face databases with 20,000 images, total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions, and state can be added to each face image.
- Face Recognition Performance of AI by Recorder (Number of Channels)16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
- Face Recognition Performance of AI by Camera (Number of Channels)16 channels
- SMD Plus įrašymo įrenginiu 8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain, and lighting condition change
- SMD Plus by CameraAll channels (32 targets/s)
- Metadata Performance of AI by Camera (Number of Channels)8 channels
- Human AttributesTop color, top type, bottom color, bottom type, hat, bag, age, gender, umbrella
- Motor Vehicle AttributesLicense plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location
- Non-motor Vehicle AttributesVehicle model, vehicle color, number of persons, helmet
- ANPR by Camera (Number of Channels)All channels (8 targets/s)
- License Plate Database CapacityCreate up to 20,000 plate numbers Blocklist and allowlist
- Prieigos kanalas 32 channels
- Tinklo pralaidumas AI disabled: 384 Mbps incoming, 384 Mbps recording, 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording, 200 Mbps outgoing
- Rezoliucija32 MP 24 MP 16 MP 12 MP 8 MP 6 MP 5 MP 4 MP 3 MP 1080p 720p 960p D1 CIF QCIF
- Iškodavimo pajėgumasAI disabled: 2-channel 32 MP@ 25 fps, 2-channel 24 MP@ 25 fps, 4-channel 16 MP@ 30 fps, 5-channel 12 MP@ 30 fps, 8-channel 8 MP@ 30 fps, 10-channel 6 MP@ 30 fps, 12-channel 5 MP@ 30 fps, 16-channel 4 MP@ 30 fps, 32-channel 1080p@ 30 fps AI enabled: 1-channel 32 MP@ 25 fps, 1-channel 24 MP@ 25 fps, 2-channel 16 MP@ 30 fps, 4-channel 12 MP@ 30 fps, 6-channel 8 MP@ 30 fps, 8-channel 6 MP@ 30 fps, 8-channel 5 MP@ 30 fps, 12-channel 4 MP@ 30 fps, 24-channel 1080p@ 30 fps
- Vaizdo išvestis2 VGA, 2 HDMI VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2
- Daugiakanalis ekranas Main screen: 1/4/8/9/16/25/36 Sub screen: 1/4/8/9/16
- Trečiųjų šalių kamerų prieiga ONVIF Panasonic Sony Axis Arecont Pelco Canon Hanwha
- Vaizdo suspaudimasSmart H.265+ H.265 Smart H.264+ H.264 MJPEG
- Garso suspaudimasG.711a G.711u PCM G726
- ProtokolaiHTTP HTTPS TCP/IP IPv4 UDP NTP DHCP DNS SMTP UPnP DDNS Alarm Server IP Search (Supports Dahua IP camera, DVR, NVS, etc.) Multicast P2P Auto Registration iSCSI
- Prieiga telefonu iOS Android
- SuderinamumasONVIF 23.12 (Profile T Profile S Profile G) CGI SDK
- NaršyklėChrome IE Safari Edge Firefox
- Tinklo režimasMulti-address mode, load balance, fault tolerance, and other network port binding modes
- Daugiakanalis atkūrimas Up to 16 channels
- Įrašymo režimas General, motion detection, intelligent, alarm, POS
- Atsarginės kopijos metodas USB device and network
- Atkūrimo režimas Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
- Disko grupė YES
- Bendroji signalizacija Motion detection local alarm alarm box camera external alarm network alarm scene changing PIR alarm thermal alarm
- Anomalijos signalizacija Camera offline storage error disk full IP conflict MAC conflict login lock abnormal behavior of fan cybersecurity exception
- Išmanioji signalizacija Face detection perimeter protection face recognition video metadata (human, motor vehicles, and non-motor vehicles) SMD Plus stereo analysis crowd distribution people counting ANPR vehicle density heat map
- Signalizacijos sąsajaRecord snapshot (panoramic) local alarm output IPC external alarm output access controller audio buzzer log, preset email
- Garso įvestis1-channel RCA
- Garso išvestis2-channel RCA
- Signalizacijos įvestis16 channels
- Signalizacijos išvestis6 channels (1-channel 12 V 1 A output)
- Disko sąsaja 4 SATA ports, each disk can contain up to 20 TB (limit varies depending on environment temperature)
- eSATA1
- RS-2321
- RS-4851 (half-duplex serial communication)
- USB3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)
- HDMI 2
- VGA 2
- Tinklo prievadas2 (10/100/1000 Mbps Ethernet port, RJ-45)
- Maitinimas100–240 VAC, 50-60 Hz
- Energijos sunaudojimasTotal output of NVR is ≤ 13 W (without HDD)
- Svoris be įpakavimo4.74 kg (10.45 lb)
- Svoris su įpakavimo6.11 kg (13.47 lb)
- Produkto dydis440.0 mm × 415.1 mm × 70.0 mm (17.32" × 16.34" × 2.76" ) (W × D × H)
- Pakuotės dydis530.0 mm × 500.0 mm × 210.0 mm (20.87" × 19.69" × 8.27" ) (W × D × H)
- Darbo sąlygos (temperatūra)–10 °C to + 55 °C (14 °F to + 131 °F)
- Sandėliavimo sąlygos temperatūra–20 °C to + 60 °C (–4 °F to + 140 °F)
- Darbo sąlygos (drėgmė)10%–93% (RH), non-condensing
- MontavimasRack or desktop
- SertifikataiFCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+ A1:2020 EN IEC 61000-3-2:2019+ A1:2021 EN 61000-3-3:2013+ A1:2019+ A2:2021 EN 55035:2017+ A11:2020 EN 50130-4:2011+ A1:2014 CE-LVD: EN 62368-1:2014
Tipas: Tinklinis įrašymo įrenginys (NVR) Modelis: Dahua NVR5432-EI Kanalų skaičius: 32 Duomenų ..
