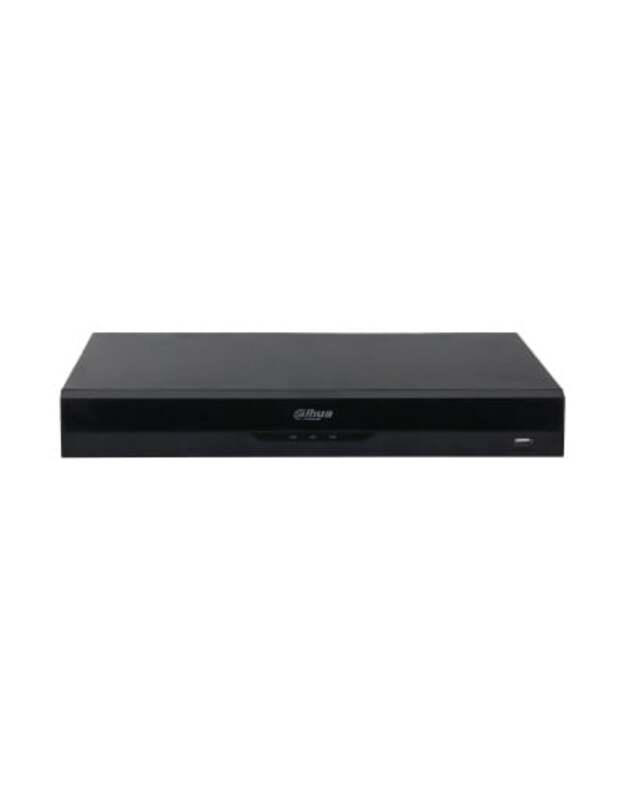

Tinklinis įrašymo įrenginys NVR Dahua WizSense NVR5216-16P-EI
Tinklinis įrašymo įrenginys NVR Dahua WizSense NVR5216-16P-EI
- Tipas: Tinklinis įrašymo įrenginys (NVR)
- Modelis: Dahua NVR5216-16P-EI
- Technologija: WizSense
- PoE palaikymas: Taip
- Kanalų skaičius: 16
- Maksimali raiška: Iki 32 Mpix per kanalą
- Kietieji diskai: 2 HDD (iki 2x20TB)
- Duomenų srautas: 384 Mbps IN/OUT
- Garso įvestis/išvestis: 1 in / 1 out (RCA)
- Tinklo sąsaja: 1000 Mbps RJ45
- USB jungtys: 2x USB
- Vaizdo išvestys: HDMI, VGA
- Pagrindinis
- Pagrindinis procesorius Industrial-grade processor
- Operacinė sistema Embedded Linux
- Operacinė sąsaja Web, Local GUI
- AI įrašymo įrenginiu Face detection face recognition perimeter protection SMD Plus
- AI pagal kamerąFace detection face recognition video metadata (human, motor vehicles, and non-motor vehicles) perimeter protection SMD Plus stereo analysis crowd distribution people counting ANPR vehicle density heat map
- AcuPick AI by Camera + RecorderMax. 16-channel, 1 combined event per channel/s
- Perimeter Performance AI by Recorder (Number of Channels)4 channels, 10 IVS rules for each channel
- Perimeter Performance of AI by Camera (Number of Channels)All channels (16 targets/s)
- Veido atributai Gender age group glasses expressions face mask beard
- Face Detection Performance of AI by Recorder (Number of Channels)2 channels (up to 12 face images/s each channel)
- Face Detection Performance of AI by Camera (Number of Channels)16 channels
- Face Database CapacityUp to 20 face databases with 20,000 images, total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
- Face Recognition Performance of AI by Recorder (Number of Channels)16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
- Face Recognition Performance of AI by Camera (Number of Channels)16 channels
- SMD Plus įrašymo įrenginiu 8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by CameraAll channels (32 targets/s)
- Metadata Performance of AI by Camera (Number of Channels)8 channels
- Human AttributesTop color, top type, bottom color, bottom type, hat, bag, age, gender, umbrella
- Motor Vehicle AttributesLicense plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location
- Non-motor Vehicle AttributesVehicle model, vehicle color, number of persons, helmet
- ANPR by Camera (Number of Channels)All channels (8 targets/s)
- License Plate Database CapacityCreate up to 20,000 plate numbers Blocklist and allowlist
- Prieigos kanalas 16 channels
- Tinklo pralaidumas AI disabled: 384 Mbps incoming, 384 Mbps recording, 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording, 200 Mbps outgoing
- Rezoliucija32 MP 24 MP 16 MP 12 MP 8 MP 6 MP 5 MP 4 MP 3 MP 1080p 720p 960p D1 CIF QCIF
- Iškodavimo pajėgumasAI disabled: 2-channel 32 MP@25 fps, 2-channel 24 MP@25 fps, 4-channel 16 MP@30 fps, 5-channel 12 MP@30 fps, 8-channel 8 MP@30 fps, 10-channel 6 MP@30 fps, 12-channel 5 MP@30 fps, 16-channel 4 MP@30 fps AI enabled: 1-channel 32 MP@25 fps, 1-channel 24 MP@25 fps, 2-channel 16 MP@30 fps, 4-channel 12 MP@30 fps, 6-channel 8 MP@30 fps, 8-channel 6 MP@30 fps, 8-channel 5 MP@30 fps, 12-channel 4 MP@30 fps
- Vaizdo išvestis1 VGA, 1 HDMI VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI and VGA
- Daugiakanalis ekranas Main screen: 1/4/8/9/16 Sub screen: 1/4/8/9/16
- Trečiųjų šalių kamerų prieiga ONVIF Panasonic Sony Axis Arecont Pelco Canon Hanwha
- Vaizdo suspaudimasSmart H.265+ H.265 Smart H.264+ H.264 MJPEG
- Garso suspaudimasG.711a G.711u PCM G726
- ProtokolaiHTTP HTTPS TCP/IP IPv4 UDP NTP DHCP DNS SMTP UPnP DDNS Alarm Server IP Search (Supports Dahua IP camera, DVR, NVS, etc.) Multicast P2P Auto Registration iSCSI
- Prieiga telefonu iOS Android
- SuderinamumasONVIF 23.12 (Profile T Profile S Profile G) CGI SDK
- NaršyklėChrome IE Safari Edge Firefox
- Daugiakanalis atkūrimas Up to 16 channels
- Įrašymo režimas General, motion detection, intelligent, alarm, POS
- Atsarginės kopijos metodas USB device and network
- Atkūrimo režimas Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
- Disko grupė Yes
- Bendroji signalizacija Motion detection local alarm alarm box camera external alarm network alarm scene changing PIR alarm thermal alarm
- Anomalijos signalizacija Camera offline storage error disk full IP conflict MAC conflict login lock abnormal behavior of fan cybersecurity exception
- Išmanioji signalizacija Face detection perimeter protection face recognition video metadata (human, motor vehicles, and non-motor vehicles) SMD Plus stereo analysis crowd distribution people counting ANPR vehicle density heat map
- Signalizacijos sąsajaRecord snapshot (panoramic) local alarm output IPC external alarm output access controller audio buzzer log, preset email
- Garso įvestis1-channel RCA
- Garso išvestis1-channel RCA
- Signalizacijos įvestis4 channels
- Signalizacijos išvestis2 channels
- Disko sąsaja 2 SATA ports, each disk can contain up to 20 TB (limit varies depending on environment temperature)
- RS-2321
- RS-4851
- USB2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
- HDMI 1
- VGA 1
- Tinklo prievadas1 (10/100/1000 Mbps Ethernet port, RJ-45)
- PoE prievadas16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE
- Maitinimas100–240 VAC, 47-63 Hz
- Energijos sunaudojimasTotal output of NVR is ≤ 10W (without HDD) Total output power of PoE is 130W, max output power of a single port is 25.5W
- Svoris be įpakavimo2.66 kg (5.86 lb)
- Svoris su įpakavimo3.82 kg (8.42 lb)
- Produkto dydis375.0 mm × 329.3 mm × 53.0 mm (14.76 × 12.96 × 2.09 ) (W × D × H)
- Pakuotės dydis451.0 mm × 147.0 mm × 425.0 mm (17.76 × 5.79 × 16.73 ) (W × D × H)
- Darbo sąlygos (temperatūra)–10 °C to +55 °C (14 °F to +131 °F)
- Sandėliavimo sąlygos temperatūra–20 °C to +60 °C (–4 °F to +140 °F)
- Darbo sąlygos (drėgmė)10%–93% (RH), non-condensing
- MontavimasRack or desktop
- SertifikataiFCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020 EN IEC 61000-3-2:2019+A1:2021 EN 61000-3-3:2013+A1:2019+A2:2021 EN 55035:2017+A11:2020 EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Tipas: Tinklinis įrašymo įrenginys (NVR) Modelis: Dahua NVR5216-16P-EI Technologija: WizSense P..
