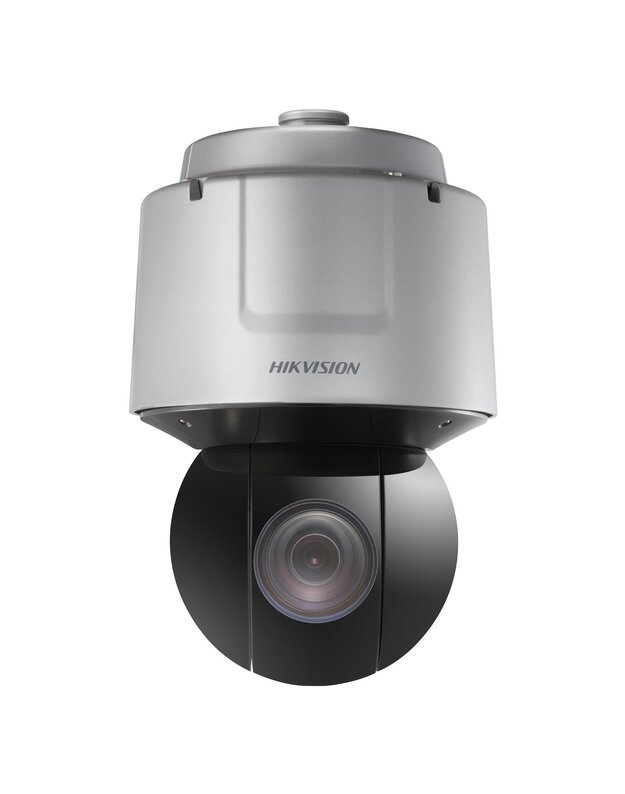

IP speed dome kamera Hikvision DS-2DF6A225X-AEL (x25, DarkFighter)

Prekės kodas: KIPDS2DF6A225XAEL

Turimas kiekis: Prekė sandėlyje

€2,320²⁴ su PVM

Turite klausimų apie šią prekę? Klauskite

Kamera
Sensorius1/1.8 progressive scan CMOS
Maks. rezoliucija1920 × 1080
Min. apšvietimasColor: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON)
Užrakto greitis1/1 s to 1/30,000 s
Day & NightIR cut filter
Priartinimas25x optical, 16x digital
Lėtas užraktasYes
DORI
Detect (25px/m): 2034.5 m
Observe (63px/m): 807.3 m
Recognize (125px/m): 406.9 m
Identify (250px/m): 203.4 m

Lęšis
FOV5.9 mm to 147.5 mm
FOV
Horizontal field of view: 59.8° to 3.3° (wide-tele),
Vertical field of view: 33.7° to 1.9° (wide-tele),
Diagonal field of view: 65° to 3.8° (wide-tele)
FokusavimasSemi-auto, manual, auto, rapid focus
DiafragamaMax. F1.5
Priartinimo greitisApprox. 4.8 s

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-20° to 90° (auto flip)
Pan greitisPan speed: configurable from 0.1° to 300°/s preset speed: 540°/s
Tilt greitisTilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
Proporcingas PanYes
Iš anksto išsaugoti nustatymai300
Išsaugotų nustatymų sustabdymasYes
Patruliavimas8 patrols, up to 32 presets for each patrol
Išsaugotų rėžimų skenavimas4 pattern scans, record time over 10 minutes for each scan
Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D pozicijaYes
PTZ būsenos vaizdavimasYes
Užduočių grafikasPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Išjungimo atmintisYes

Vaizdas
Pagrindinis srautas
50 Hz: 25 fps (1920×1080, 1280×960, 1280×720)
60 Hz: 24 fps (1920×1080, 1280×960, 1280×720)
Antrinis srautas
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
Trečias srautas
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Vaizdo bitų greitis32 Kbps to 16384 Kbps
H.264 tipasBaseline profile, main profile, high profile
H.265 tipasMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

Garsas
Garso suspaudimasG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Garso bitų greitis64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Internetas
ProtokolaiIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
Tiesioginis vaizdo žiūrėjimasUp to 20 channels
APIOpen-ended API, ISAPI, Hikvision SDK, Third-party management platform, ISUP, Open Network Video Interface (Profile S, Profile G, Profile T)
Sklandus srautasYes
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
SaugumasUser authentication (ID and PW), Host authentication (MAC address) HTTPS encryption IEEE 802.1x port-based network access control IP address filtering
Vidinė atmintisNAS (NFS, SMB/ CIFS), ANR
KlientasiVMS-4200, Hik-Connect, HikCentral
NaršyklėIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Nuotrauka
Diena/Naktis režimasDay, night, auto, scheduled-switch
Wide Dynamic Range (WDR)140 dB WDR
SNR≥ 52 dB
Rūko šalinimasOptical defog
Vaizdo stabilizavimasEIS (Built-in gyroscope to improve EIS performance)
Nuotraukų pagražinimasBLC, HLC, 3D DNR
Privatumo kaukė24 programmable polygon privacy masks, mask color or mosaic configurable
Regioninis fokusavimasYes
Regioninė ekspozicijaYes

Sąsaja
Vaizdo išvestis1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
Interneto sąsaja1 RJ45 10M/100M self-adaptive Ethernet port
Saugyklos vietaBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB NAS (NFS, SMB/ CIFS), ANR
Garsas1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10% 1 output (line out), line level, output impedance: 600 Ω
Signalizacija7 alarm inputs, 2 alarm outputs
RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive

Funkcijos
Pagrindinės funkcijosMotion detection, video tampering alarm, alarm input and output, exception
Išmaniosios funkcijosIntrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, vandal-proof alarm, audio exception detection
SąsajaAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Išmanus sekimasManual tracking, auto-tracking

Išmaniosios funkcijos
Veido atpažinimasSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture
Perimetro apsauga
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Kelių eismo funkcijosSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)

Pagrindinis
Sistemos parametrai24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
Dydis⌀ 231.1 mm × 355.6 mm (⌀ 9.10 × 14 )
SvorisApprox. 6 kg (13.23 lb.)
Darbo sąlygosTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
Pagrindinės funkcijosMirror, password protection, watermark, IP address filter
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Patvirtinimai
EMC
FCC SDoC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC VoC (ICES-003: Issue 7)
KC (KN 32: 2015, KN 35: 2015)
Saugumas
UL (UL 62368-1)
CB (IEC 62368-1:2014+A11)
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005)
LOA (IEC/EN 60950-1)
Aplinkosauga
CE-RoHS (2011/65/EU) WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
ApsaugaLightning Protection, Surge Protection and Voltage Transient Protection, ±6 kV Line to Gnd, ±3kV Line to Line, IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
