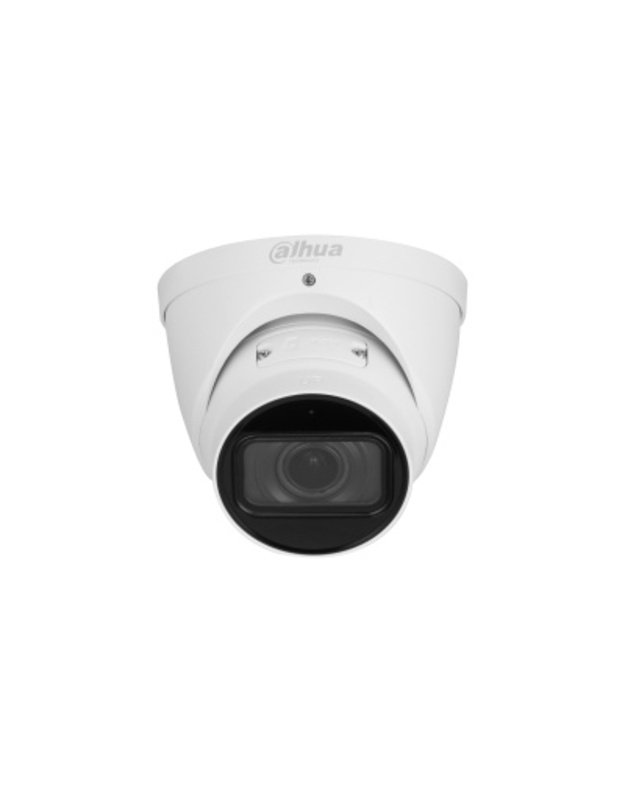

IP kamera Dahua Dome IPC-HDW5541T-ZE 2.7-13.5mm (Balta, 5MP, IR LED 50m, IP67)
IP kamera Dahua Dome IPC-HDW5541T-ZE 2.7-13.5mm (Balta, 5MP, IR LED 50m, IP67)
- Tipas: IP kamera
- Modelis: IPC-HDW5541T-ZE
- Prekės ženklas: Dahua
- Serija: WizMind
- Technologija: Starlight
- Vaizdo jutiklis: 5 MP
- Objektyvas: 2.7-13.5 mm (114°-32°)
- Apšvietimas: IR LED, iki 50 m
- Garsas: Integruotas mikrofonas
- Vaizdo technologijos: 120 dB WDR, 3DNR
- Pažangios funkcijos: SMD 3.0
- Ryšys: ePoE
- Atmintis: SD kortelė iki 512 GB
- Atsparumas: IP67, IK10
- Darbinė temperatūra: –40°C iki +60°C
- Pagrindinis
- Sensorius1/2.7 CMOS
- Maks. rezoliucija2960 (H) × 1668 (V)
- ROM4 GB
- RAM1 GB
- Skenavimo sistemaProgressive
- Elektroninis užrakto greitisAuto/Manual 1/3 s–1/100,000 s
- Min. apšvietimas0.0009 Lux@F1.5 (Color, 30IRE), 0.0005 Lux@F1.5 (B/W, 30IRE), 0 lux (Illuminator on)
- S/N santykis> 56 dB
- Apšvietimo atstumasUp to 40 m (131.23 ft) (IR)
- Apšvietimo valdymasAuto Manual
- Apšvietimo skaičius2 (IR LED)
- Kampo keitimasPan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- Lęšio tipasMotorized vari-focal
- Lęšio montavimasφ14
- FOV2.7 mm–13.5 mm
- Maks. diafragmaF1.5
- FOVH: 114°–32° V: 58°–17° D: 138°–36°
- Diafragmos valdymasAuto
- Artimiausias fokusavimas0.8 m (2.62 ft)
- DORI Distance (Wide)Detect: 64.0 m (209.97 ft), Observe: 25.6 m (83.99 ft), Recognize: 12.8 m (41.99 ft), Identify: 6.4 m (20.99 ft)
- DORI Distance (Tele)Detect: 210.0 m (688.98 ft), Observe: 84.0 m (275.59 ft), Recognize: 42.0 m (137.80 ft), Identify: 21.0 m (68.90 ft)
- IVS (Perimetro apsauga)Intrusion, tripwire, fast moving (supports classification and accurate detection of vehicle, animal, and human), loitering detection, people gathering, parking detection, long-distance mode, self-learning false alarm filtering
- Išmanus objektų aptikimasSmart abandoned object, smart missing object
- SMDSMD 3.0
- AcuPickDeep learning-based target matching and search for people, animals, and motor vehicles
- AI SSAYes
- Veidų atpažinimasFace tracking, snapshot, optimization, exposure, attribute extraction (6 attributes, 8 expressions), filtering, and optimization strategies
- Žmonių skaičiavimasTripwire and area-based counting with queue management, reporting (daily, weekly, monthly, yearly)
- Šilumos žemėlapisYes
- Vaizdo metaduomenysDetection and attributes for motor vehicles, non-motor vehicles, faces, and human bodies
- Išmanioji paieškaWorks with Smart NVR for refined intelligent search and event extraction
- Vaizdo suspaudimasH.265 H.264 H.264H H.264B MJPEG (sub stream only)
- Išmanusis kodekasSmart H.265+ Smart H.264+
- AI kodavimasAI H.265 AI H.264
- Vaizdo kadrų dažnisMain stream: 2960 × 1668@(1–25/30 fps), Sub stream: D1@(1–25/30 fps), Third stream: 1080p@(1–25/30 fps), Fourth stream: 720p@(1–25/30 fps)
- Srauto pajėgumas4 streams
- Rezoliucija5M (2960 × 1668), 5M (2880 × 1620), 4M (2688 × 1520), 3.6M (2560 × 1440), 3M (2048 × 1536), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
- Bitų greičio kontrolėCBR/VBR
- Vaizdo bitų greitisH.264: 32 kbps–16384 kbps, H.265: 12 kbps–11776 kbps
- Dienos/nakties režimasAuto(ICR)/Color/B/W
- BLCYes
- HLCYes
- WDR120 dB
- Scene Self-adaptation (SSA)Yes
- Baltos spalvos balansasAuto Natural Street lamp Outdoor Manual Regional custom
- Stiprinimo valdymasAuto
- Triukšmo mažinimas3D NR
- Judesių aptikimasOFF/ON (4 areas, rectangular)
- Intereso sritisYes (4 areas)
- Vaizdo stabilizavimasElectronic Image Stabilization (EIS)
- Rūko šalinimasYes
- Vaizdo rotacija0°/90°/180°/270° (Supports 90°/270° with 4M (2688 × 1520) resolution and lower)
- VeidrodisYes
- Privatumo maskavimas8 areas
- LDCYes
- Integruotas mikrofonasYes
- Garso suspaudimasG.711a G.711Mu PCM G.726 G.723
- Pavojaus įvykisNo SD card SD card full SD card error network disconnection IP conflict illegal access motion detection video tampering tripwire intrusion fast moving abandoned object missing object loitering detection people gathering parking detection scene changing audio detection voltage detection face detection video metadata SMD people counting in area stay detection people counting people number error detection queue people number alarm queue time alarm security exception defocus detection
- Tinklo prievadasRJ-45 (10/100 Enhancement Base-T)
- SDK ir APIYes
- ProtokolaiIPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP P2P Auto Register
- SuderinamumasONVIF (Profile S, Profile G, Profile T, Profile M) CGI
- Naudotojas/prievadas20 (Total bandwidth: 80 M)
- SaugyklaFTP SFTP Micro SD card (support max. 1 TB) NAS
- NaršyklėIE 9 and later, Chrome 102 and later, Firefox 88 and later
- Valdymo programinė įrangaSmartPSS Lite DSS DMSS
- Mobilioji programaiOS Android
- Kibernetinis saugumasConfiguration encryption Trusted execution Digest Security logs WSSE Account lockout Syslog Video encryption 802.1x IP/MAC filtering HTTPS Trusted upgrade Trusted boot Firmware encryption Generation and importing of X.509 certification
- SertifikataiCE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, FCC: 47 CFR FCC Part 15 Subpart B, UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
- Maitinimas12 VDC/PoE (802.3af)/ePoE
- Dual Power BackupSupports power redundancy when using both adapter and PoE, but will not restart when one is disconnected
- Energijos sunaudojimasBasic: 3.7 W (12 VDC) 4.8 W (PoE), Max. (H.265+ WDR + Intelligence on + IR on): 7 W (12 VDC) 8.5 W (PoE)
- Darbo sąlygos (temperatūra)–30 °C to +60 °C (–22 °F to +140 °F)
- Darbo sąlygos (drėgmė)≤95%
- Sandėliavimo sąlygos temperatūra–40 °C to +60 °C (–40 °F to +140 °F)
- Sandėliavimo sąlygos drėgmė10%–95% (RH), non-condensing
- ApsaugaIP67
- Korpuso medžiagasMetal
- Produkto dydisΦ122.0 mm × 108.3 mm (4.8 × Φ4.26 )
- Svoris be įpakavimo0.70 kg (1.54 lb)
- Svoris su įpakavimo0.96 kg (2.12 lb)
Tipas: IP kamera Modelis: IPC-HDW5541T-ZE Prekės ženklas: Dahua Serija: WizMind Technologija: ..
