  3. Hikvision Turret iDS-2CD5347G2-XS F2.8 (balta, 4MP, Hybrid Light, Darkfighter 2.0, IR+LED 40m)

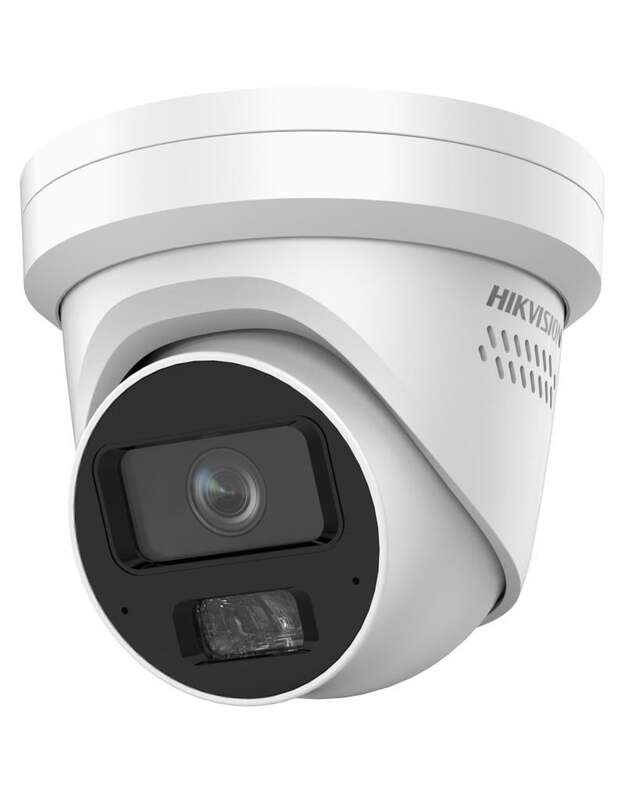

Hikvision Turret iDS-2CD5347G2-XS F2.8 (balta, 4MP, Hybrid Light, Darkfighter 2.0, IR+LED 40m)

Naujiena

Prekės kodas: KIP2CD5347G2VXSF28

Turimas kiekis: Prekė sandėlyje

  • Vaizdo raiška: 4 MP
  • Technologija: Darkfighter 2.0, H.265+
  • Apsaugos klasė: IP67
  • Dirbtinis intelektas: perimetro apsauga, AI Encoding
  • Sumažina klaidingų aliarmų skaičių iki 90 %
  • Sumažina saugyklos naudojimą iki 50 %
€56656 su PVM
Turite klausimų apie šią prekę? Klauskite
  • Patvirtinimai
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015
  • AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ApsaugaIP67: IEC 60529-2013
  • SaugumasCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
  • Transport CertificationIATA Dangerous Goods Regulations, Dangerous Goods List, International Maritime Dangerous Goods Code, Railway Dangerous Goods List
  • Garsas
  • Garso bitų dažnis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
  • Garso tipasMono sound
  • Pašalinių garsų šalinimasYes
  • Camera
  • Kampo keitimasPan: 0° to 355°,tilt: 0° to 65°,rotate: 0° to 360°
  • Diena& NaktisIR cut filter,Blue glass module (less ghost phenomenon)
  • Vaizdo jutiklis1/1.8 Progressive Scan CMOS
  • Didžiausia raiška2688 × 1520
  • Minimalus apšvietimasB/W: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR,Color: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light
  • Užrakto greitis1 s to 1/100,000 s
  • DORI
  • DORI2.8 mm: D (Detect) : 61.5 m, O (Observe) : 24.4 m, R (Recognize): 12.73 m, I(Identify): 6.2 m4 mm: D (Detect) : 72.1 m, O (Observe) : 28.6 m, R (Recognize): 14.4 m, I(Identify): 7.2 mThe DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.
  • Išmaniosios funkcijos
  • AcuSeekSupport search for humans, vehicles, This function requires use with AcuSeek NVR/Servers.
  • Meta duomenysIntrusion detection,line crossing detection,region entrance detection,region exiting detection
  • Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Support combined event alarm triggeringDedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI camerasVCA range: up to 40 m (nighttime)
  • Funkcijos
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (HDD full, HDD error, network disconnected, IP address conflict, illegal login, abnormal restart),alarm input and output,video quality diagnosis
  • SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
  • Išmaniosios funkcijosScene change detection,audio exception detection,defocus detection, unattended baggage detection, object removal detection, loitering detection, people gathering detection, fast moving detection, parking detection
  • Bendra informacija
  • MatmenysØ138.63 mm × 123.42 mm (Ø5.46 × 4.86 )
  • Pagrindinės funkcijosHeartbeat,anti-banding,one-key reset,mirror,password protection,flash log
  • Integrated Connector PanelNo
  • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • MedžiagaAluminum alloy body
  • Pakuotės dydis170 mm × 170 mm × 150 mm (6.7 × 6.7 × 6.0 )
  • Maitinimas12 VDC ± 20%, 0.93 A, max. 11.2 W,PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.25 A to 0.19 A, max. 12.7 W
  • Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • SvorisApprox. 820 g (1.81 lb.)
  • Svoris su įpakavimuApprox. 1095 g (2.42 lb.)
  • Apšvietimas
  • IR bangos ilgis850 nm
  • Išmanus papildomas apšvietimasYes
  • Papildomo apšvietimo diapazonasUp to 40 m
  • Papildomo apšviešimo tipasHybrid (IR and White Light)
  • Nuotrauka
  • Dienos/nakties perjungiklisDay,Night,Auto,Schedule,Alarm Trigger
  • Nuotraukų pagražinimasBLC,HLC,3D DNR,Defog,Distortion Correction
  • Nuotraukos parametrų keitiklisYes
  • Vaizdo nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Vaizdo stabilizavimasEIS
  • Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Privatumo kaukė8 programmable polygon privacy masks
  • Wide Dynamic Range (WDR)140 dB
  • Sąsaja
  • Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Garsas1 input (line in), input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
  • Integruotas mikrofonas 2 built-in microphones
  • Integruotas garsiakalbis1 built-in speaker
  • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • Išėjimo galia12 VDC, max. 100 mAExternal extension cord less than 10 meters.
  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Perkrovimo mygtukasYes
  • Objektyvas
  • DiafragmaF1.0
  • Focal Length & FOV2.8 mm, horizontal FOV 111°, vertical FOV 58°, diagonal FOV 138°4 mm, horizontal FOV 95°, vertical FOV 48°, diagonal FOV 117°
  • Rainelės tipasFixed
  • Objektyvo tipasFixed focal lens, 2.8 and 4 mm optional
  • Tinklas
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • KlientasiVMS-4200,Hik-Connect
  • Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
  • SaugaPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3,AES128/256
  • Tiesioginis vaizdo žiūrėjimasUp to 20 channels
  • Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
  • NaršyklėPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Vaizdas
  • AI EncodingYes
  • Bitų dažnio valdymasCBR,VBR
  • Ketvirtas srautas50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • H.264 tipasBaseline Profile,Main Profile,High Profile
  • H.265 tipasMain Profile
  • Pagrindinis srautas50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Region of Interest (ROI)4 fixed regions for each stream
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Antrinis srautas50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
  • Trečias srautas50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Vaizdo bitų dažnis32 Kbps to 8 Mbps
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG
