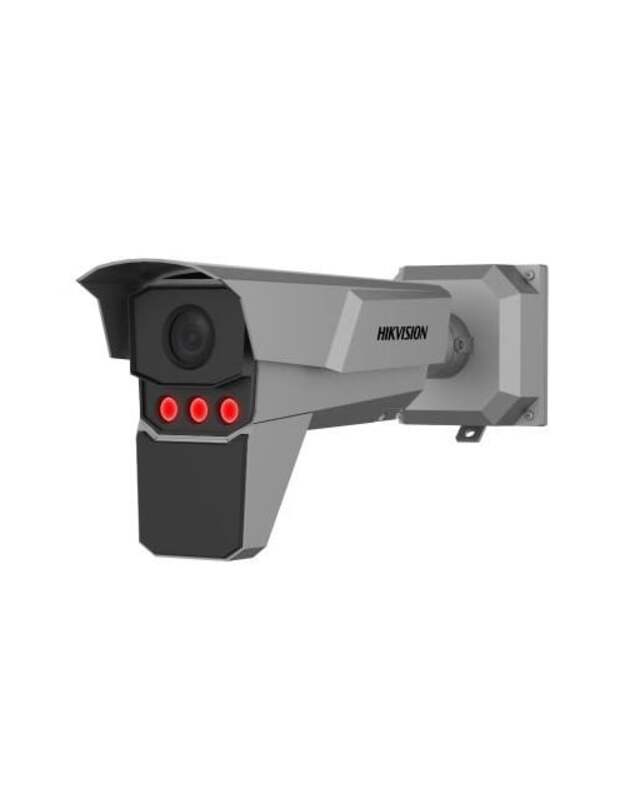

Hikvision iDS-TCM403-GIR/POE/0832 F8-32mm (ANPR, 4MP, IR 50m, PoE+, IP67, IK10)
Hikvision iDS-TCM403-GIR/POE/0832 F8-32mm (ANPR, 4MP, IR 50m, PoE+, IP67, IK10)
- Vaizdas: 4 MP (1/1.8 CMOS)
- Integruotas 77 GHz milimetrinių bangų radaras
- WDR: 140 dB
- Technologija: ANPR su AI
- Vaizdo glaudinimas: H.265
- Apsaugos klasės: IP67, IK10
- Patvirtinimai
- Apsauga nuo korozijos-Y: NEMA 4X (NEMA 250-2018)
- EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
- AplinkosaugaCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
- ApsaugaIK10: IEC 62262:2002,IP67: IEC 60529-2013
- RFCE-RED: EN 301489-1 V2.2.3,EN 301489-51 V2.1.1,EN 301091-2 V2.1.1,EN IEC 62311:2020
- SaugumasCB: IEC 62368-1: 2014+A11,CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
- Garsas
- Garso bitų dažnis8Kbps (G.711) /16Kbps (G.722.1)
- Audio Compression G.711/G.722.1
- Kamera
- Diena& NaktisIR cut filter
- Vaizdo jutiklis1/1.8″ progressive scan CMOS
- Didžiausia raiška2688 × 1520
- Minimalus apšvietimasColor: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Užrakto greitis1/50 s to 1/40000 s
- Funkcijos
- Pagrindinės funkcijosHDD error,Network disconnected,IP address conflict
- Bendra informacija
- Matmenys429.5 mm × 120 mm × 184.2 mm (16.9 × 4.72 × 7.3 ) (L × W × H)
- Pagrindinės funkcijosOne-key reset, three streams, heartbeat, password protection, watermark
- Kalba8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
- MedžiagaAluminum alloy
- Darbo sąlygos-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
- Operacinė sistemaLinux
- Pakuotės dydis595 mm × 259 mm × 193 mm (23.4 × 10.2 × 7.6 ) (L × W × H)
- MaitinimasDC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block,PoE: 802.3at, Type 2, Class 4, max. 15 W
- Storage Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
- Weight Approx. 3.405 kg (7.51 lb.)
- Svoris su įpakavimuApprox. 4.635 kg (10.22 lb.)
- Apšvietimas
- Built-in Supplement Light RangeUp to 50 m
- Built-in Supplement Light TypeIR light
- IR bangos ilgis850 nm
- Supplement Light Number3
- Nuotrauka
- Dienos/nakties perjungiklisAuto/Scheduled/Manual
- Nuotraukų pagražinimasBLC, 3D DNR
- Vaizdo nustatymaiSaturation,Brightness,Contrast,Sharpness,Gain,White balance,AGC,Adjustable by client software or web browser.
- Wide Dynamic Range (WDR)140 dB
- Sąsaja
- Alarm 1 input interface, 1 output interface, 2 relays
- GarsasSupported
- Interneto sąsaja1 RJ45 10M/100M/1000M Ethernet interface
- Vidinė atmintisBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB
- RS-4851 RS-485 interface
- Wiegand1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)
- Objektyvas
- Diafragma2.8-12 mm: F1.38,8-32 mm: F1.7
- Focal Length & FOV2.8-12mm : Horizontal: 113.5° to 39°, Vertical: 58.4° to 22.7°, Diagonal: 141.3° to 44.3°8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°
- Focus Auto
- Rainelės tipasDC-IRIS
- Tinklas
- APIISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
- Vidinė atmintisMicro SD/TF card (512 GB), local storage and CVR, NVR, ANR
- ProtokolaiTCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
- SaugaPassword protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.2, 1.3,Host authentication (MAC address)
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
- NaršyklėChrome V61+, IE9 to IE11, Firefox V41+, Edge
- Radar
- Coverage LanesUp to 3 lane(s)
- Detection DistanceUp to 100 m
- Horizontal Detection Angle± 22°
- Modulation WaveformFMCW
- Speed Measuring Range up to 120Km/h
- Vertical Detection Angle± 10°
- Working Frequency77 GHz
- Kelių eismo ir transporto priemonių aptikimas
- Accuracy (Under recommended installation and lighting conditions)Capture rate > 99%,Vehicle moving direction recognition accuracy > 98.5%,LPR accuracy > 98%,Mistaken capture rate < 2%
- Capture Speed Range5 to 120 km/h
- CoverageUp to 3 lane(s)
- LPR Countries/RegionsMiddle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
- Motorcycle LPRSupported
- No License Plate DetectionSupported
- Išmanioji funkcijaHelmet Detection, Manned Non-MotorTraffic flow detection：average speed, traffic flow, queuing length, and traffic statusIncident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving
- Vehicle ColorRed, yellow, green, blue, pink, purple, cyan, brown, white, grey, blackRecognizable at daytime only.
- Vehicle Manufacturer212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C& C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
- Vehicle TypeCar,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle
- Vaizdas
- H.264 tipasBaseline profile/Main profile/High profile
- H.265 tipasMain profile
- Pagrindinis srautas50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
- Antrinis srautas50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
- Trečias srautas50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288)60 Hz: 30 fps (1280 × 720, 704 × 576, 352 × 288)
- Vaizdo bitų dažnis32 Kbps to 16 Mbps
- Video Compression H.264 and H.265 encodingMain stream: H.265/H.264/MJPEGSub-stream: H.265/H.264/MJPEG
Vaizdas: 4 MP (1/1.8 CMOS) Integruotas 77 GHz milimetrinių bangų radaras WDR: 140 dB Technolo..
