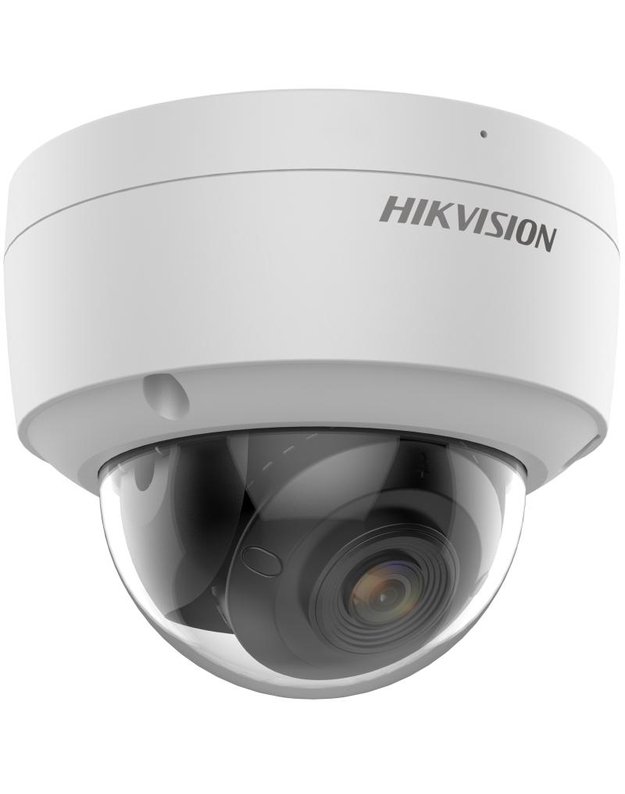

Hikvision dome DS-2CD2147G2(C) F2.8 (balta, 4 MP, 30 m. LED, ColorVu)

Naujiena

Prekės kodas: KIP2CD2147G2CF28

Turimas kiekis: Prekė sandėlyje

  • MP (MegaPixel): 4 MP
  • Objektyvas: 2.8 mm, horizontalus FOV: 112°
  • Technologija: ColorVu
  • Integruotas mikrofonas: Taip
  • Naktinis pašvietimas: 30 m. LED
  • Vieta microSD talpai: Taip, 512GB
  • Darbo sąlygos: -30 °C iki 60 °C
  • Saugos lygis: IP67
  • Vaizdo suspaudimas: H.265+
  • WiFi: Ne
  • Laikiklis/bazė (papildomai): DS-1272ZJ-120
  • Lauko/vidaus: Lauko
€31124 su PVM
Turite klausimų apie šią prekę? Klauskite
  • Kamera
  • Sensorius1/1.8 Progressive Scan CMOS
  • Maks. rezoliucija2688 × 1520
  • Min. apšvietimas0.0005 Lux @ (F1.0, AGC ON)
  • Užrakto greitis1/3 s to 1/100,000 s
  • Day & NightBlue glass module to reduce ghost phenomenon
  • Kampo keitimasPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lęšis
  • Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°

    4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°

  • Lęšio montavimasM16
  • Rainelės tipasFixed
  • DiafragamaF1.0
  • DORI
  • DORI

    2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m

    4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

  • Vaizdas
  • Pagrindinis srautas

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Antrinis srautas

    50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

  • Trečias srautas

    50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    *Third stream is supported under certain settings.

  • Vaizdo suspaudimas

    Main stream: H.265/H.264/H.265+/H.264+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

    *Third stream is supported under certain settings.

  • Vaizdo bitų greitis32 Kbps to 8 Mbps
  • H.264 tipasBaseline Profile/Main Profile/High Profile
  • H.265 tipasMain Profile
  • Bitų greičio kontrolėCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream
  • Garsas
  • Garso suspaudimas-SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Garso bitų greitis-SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Garso atrankos dažnis-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Pašalinių garsų šalinimas-SU: Yes
  • Internetas
  • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
  • Tiesioginis vaizdo žiūrėjimasUp to 6 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Vidinė atmintis

    MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • KlientasiVMS-4200, Hik-Connect, Hik-Central
  • Naršyklė

    Plug-in required live view: IE 10, IE 11

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Nuotrauka
  • Nuotraukos parametrų keitiklisYes
  • Nuotraukos nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Wide Dynamic Range (WDR)130 dB
  • SNR≥ 52 dB
  • Nuotraukų pagražinimasBLC, HLC, 3D DNR
  • Sąsaja
  • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Vidinė atmintisBuilt-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 512 GB
  • Įmontuotas mikrofonas-SU: Yes
  • Garsas

    -SU: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

    1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

  • Signalizacija-SU: 1 input, 1 output (max. 12 VDC, 30 mA)
  • Perkrovimo mygtukasYes
  • Funkcijos
  • Pagrindinės funckcijosMotion detection (human and vehicle targets classification), video tampering alarm, exception
  • Išmaniosios funkcijos

    Line crossing detection, intrusion detection, region entrance detection, region exiting detection

    Scene change detection

  • Sąsaja

    Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

    -SU: audible warning

  • Išmaniosios funkcijos
  • Veido atpažinimasYes
  • Pagrindinis
  • Sistemos parametrai

    12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W

  • DydisØ121.4 mm × 100.1 mm (Ø4.8 × 3.9 )
  • Pakuotės dydis150 mm × 150 mm × 141 mm (5.9 × 5.9 ×5.6 )
  • SvorisApprox. 580 g (1.2 lb.)
  • Svoris su įpakavimuApprox. 820 g (1.6 lb.)
  • Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Kalba

    33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Patvirtinimai
  • EMC

    FCC SDoC (47 CFR Part 15, Subpart B)

    CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014)

    RCM (AS/NZS CISPR 32: 2015)

    IC VoC (ICES-003: Issue 6, 2016)

  • Saugumas

    UL (UL 60950-1)

    CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)

    CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)

  • AplinkosaugaCE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
  • ApsaugaIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
