  3. Hikvision Bullet iDS-2CD5T47G2/V-XHSY F2.8 (4MP, IR+LED 80m, DarkFighter)

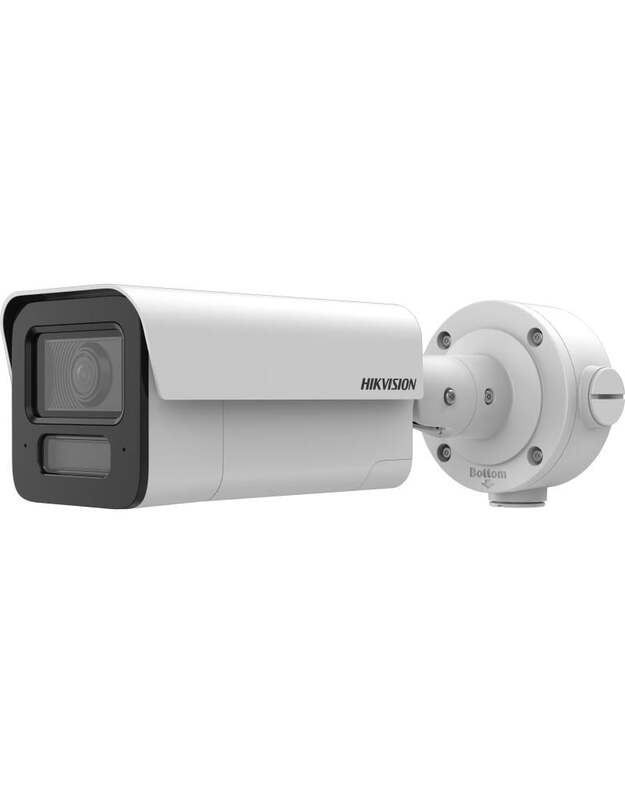

Hikvision Bullet iDS-2CD5T47G2/V-XHSY F2.8 (4MP, IR+LED 80m, DarkFighter)

Naujiena

Prekės kodas: KIP2CD5T47G2VXHSYF28

Turimas kiekis: Prekė sandėlyje

  • Aukštos kokybės vaizdas su 4 MP raiška
  • Puikus našumas esant prastam apšvietimui su DarkFighter2.0 technologija
  • Efektyvi H.265+ glaudinimo technologija taupo pralaidumą ir saugyklą
  • Atsparumas vandeniui ir dulkėms (IP67), smūgiams (IK10) ir korozijai
  • Integruotas priekinio stiklo šildytuvas aiškiam vaizdui lietingu ar snieguotu oru
  • Specialus didelės apimties AI modelis perimetro apsaugai, 90 % mažiau klaidingų pavojaus signalų nei įprastos AI kameros
€86562 su PVM
Turite klausimų apie šią prekę? Klauskite
  • Patvirtinimai
  • Apsauga nuo korozijos-Y: NEMA 4X (NEMA 250-2018)
  • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
  • AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
  • SaugumasCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,LOA: IEC/EN 60950-1
  • Garsas
  • Garso bitų dažnis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
  • Garso tipasMono sound
  • Pašalinių garsų šalinimasYes
  • Camera
  • Diena& NaktisIR cut filter,Blue glass module (less ghost phenomenon)
  • Vaizdo jutiklis1/1.8 Progressive Scan CMOS
  • Didžiausia raiška2688 × 1520
  • Minimalus apšvietimasColor: 0.0014 Lux @ (F1.0, AGC ON),B/W: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR,0 Lux with light
  • Užrakto greitis1 s to 1/100,000 s
  • DORI
  • DORI2.8 mm, D (Detect): 61 m, O (Observe): 24 m, R (Recognize): 12 m, I (Identify): 6 m4 mm, D (Detect): 75 m, O (Observe): 30 m, R (Recognize): 15 m, I (Identify): 7 mThe DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.
  • Išmaniosios funkcijos
  • Meta duomenysIntrusion detection,line crossing detection,region entrance detection,region exiting detection
  • Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Support combined event alarm triggeringDedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI camerasVCA range:4 mm models: 5 m to 80 m (daytime), 5 m to 60 m (nighttime)2.8 mm models: 3 m to 70 m (daytime), 3 m to 50 m (nighttime)*Result based on standard setup and test environment
  • Funkcijos
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error)
  • SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
  • Išmaniosios funkcijosscene change detection,audio exception detection,defocus detection,loitering detection,people gathering detection,fast moving detection,parking detection, unattended baggage detection,object removal detection
  • Bendrieji duomenys
  • Rasos šalinimasYes
  • Matmenys326.3 mm × 113.0 mm × 88.5 mm (12.85 × 4.45 × 3.48 )
  • Pagrindinės funkcijosHeartbeat,anti-banding,one-key reset,mirror,password protection,flash log
  • ŠildytuvasYes
  • Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • MedžiagaAluminum alloy body
  • Pakuotės dydis386 mm × 156 mm × 155 mm (15.3 × 6.2 × 6.2 )
  • Galiatwo-core terminal block,12 VDC ± 20%, 1.4 A, max. 16.8 W,PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.4 A to 0.3 A, max. 17.1 W
  • Darbo sąlygosWith -H: -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing),Without -H: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
  • Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • SvorisApprox. 1370 g (3 lb.)
  • Svoris su įpakavimuApprox. 2084 g (4.59 lb.)
  • Apšvietimas
  • IR bangos ilgis850 nm
  • Išmanus papildomas apšvietimasYes
  • Papildomo apšvietimo diapazonasUp to 80 m
  • Papildomo apšviešimo tipasIR,White Light
  • Nuotrauka
  • Dienos/nakties perjungiklisDay,Night,Auto,Schedule,Alarm Trigger
  • Nuotraukų pagražinimasBLC,HLC,3D DNR,Distortion Correction,Defog
  • Nuotraukos parametrų keitiklisYes
  • Vaizdo nustatymaiRotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
  • Vaizdo stabilizavimasEIS
  • Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Privatumo kaukė8 programmable polygon privacy masks
  • SNR≥ 52 dB
  • Wide Dynamic Range (WDR)120 dB
  • Sąsaja
  • Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Garsas1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
  • Integruotas mikrofonas1 built-in microphone
  • Integruotas garsiakalbis 1 built-in speaker,Max. power consumption: 1.5 W
  • Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • Išėjimo galia12 VDC, max. 100 mA
  • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Perkrovimo mygtukasYes
  • Objektyvas
  • DiafragmaF1.0
  • Focal Length & FOV2.8 mm, horizontal FOV 104°, vertical FOV 54°, diagonal FOV 127°4 mm, horizontal FOV 89°, vertical FOV 46°, diagonal FOV 108°
  • Rainelės tipasFixed
  • Tinklas
  • APIISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
  • KlientasiVMS-4200,Hik-Connect,Hik-Central
  • Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
  • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, AES128/256
  • Tiesioginis vaizdo žiūrėjimasUp to 20 channels
  • Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
  • NaršyklėPlug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Vaizdas
  • Bitų dažnio valdymasCBR,VBR
  • H.264 tipasBaseline Profile,Main Profile,High Profile
  • H.265 tipasMain Profile
  • Pagrindinis srautas50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Region of Interest (ROI)8 fixed regions for each stream
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Antrinis srautas50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
  • Trečias srautas50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Vaizdo bitų dažnis32 Kbps to 8 Mbps
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
