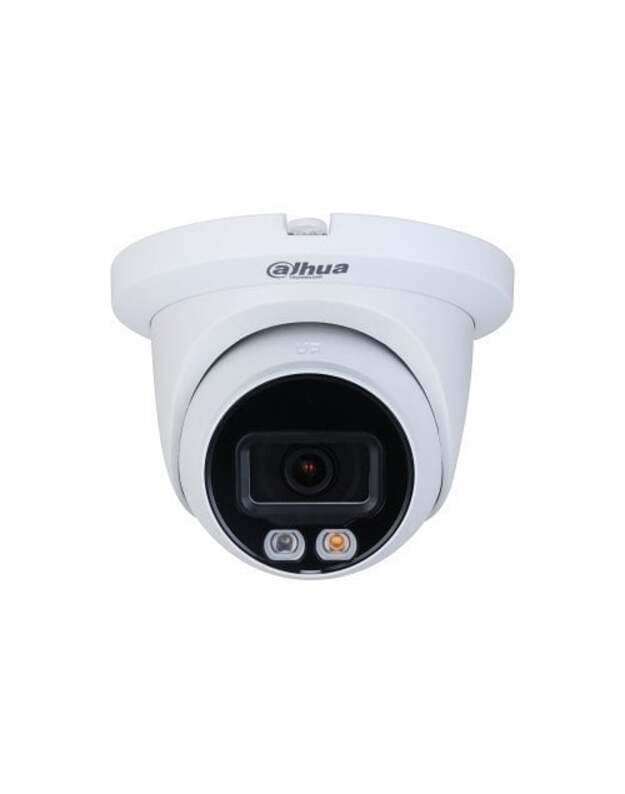

Dome kamera Dahua IPC-HDW2449T-S-IL-0280B F2.8 (4 MP, 95°, IR+LED 30 m, IP67, IK10)
Dome kamera Dahua IPC-HDW2449T-S-IL-0280B F2.8 (4 MP, 95°, IR+LED 30 m, IP67, IK10)
- Tipas: dome IP kamera
- Prekės ženklas: Dahua
- Modelis: IPC-HDW2449T-S-IL-0280B
- Technologija: WizSense, dual illumination
- Objektyvas: 2.8 mm (95°)
- Skiriamoji geba: 4 MP
- Vaizdo formatas: H.265
- WDR: 120 dB
- Vaizdo funkcijos: 3D DNR, HLC, BLC
- Apsaugos klasės: IP67, IK10
- Integruotas mikrofonas
- Apšvietimas: IR + balta šviesa iki 30 m
- Maitinimas: PoE
- Atmintis: SD iki 256 GB
- Darbinė temperatūra: –40°C iki +60°C
- Bendras
- ModelisDH-IPC-HDW2449TM-S-IL
- Tipas4MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
- Vaizdo jutiklis1/2.9 CMOS
- Didžiausia raiška2688 × 1520 (4MP)
- ROM / RAM128 MB / 128 MB
- Skenavimo sistemaProgressive
- Minimalaus apšvietimo lygis0.006 lux@F1.6 (Color), 0.0006 lux@F1.6 (B/W), 0 lux (IR/Warm light on)
- Apšvietimo atstumas30 m (IR), 30 m (Warm light)
- Illuminator Control/CountAuto/Manual 1 IR LED, 1 Warm light
- Pasukimas/krypimas/sukimasPan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- Objektyvo tipasFixed-focal
- Objektyvo tvirtinimasM12
- Focal Length Options2.8 mm, 3.6 mm
- Max ApertureF1.6
- Field of View (2.8 mm)H: 95°, V: 52°, D: 114°
- Field of View (3.6 mm)H: 78°, V: 41°, D: 94°
- Artimo fokusavimo atstumas2.8 mm: 0.9 m 3.6 mm: 1.6 m
- DORI Distance (2.8 mm)Detect: 63.6 m, Observe: 25.4 m, Recognize: 12.7 m, Identify: 6.4 m
- DORI atstumas (3.6 mm)Detect: 85.4 m, Observe: 34.2 m, Recognize: 17.1 m, Identify: 8.5 m
- Intelligent FunctionsPerimeter protection (Intrusion, Tripwire - human/vehicle classification), SMD Plus, Smart Search
- Vaizdo glaudinimasH.265, H.264, H.264B, H.264H, MJPEG (sub stream)
- Išmanusis kodekasSmart H.265+, Smart H.264+
- Kadrų dažnis2688×1520@1–20 fps, 2560×1440@1–25/30 fps (main) 704×576@1–25 fps, 704×480@1–30 fps (sub)
- Streams2 streams
- Supported Resolutions4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
- Bitrate Control / Bit RateCBR/VBR H.264: 32–6144 kbps, H.265: 12–6144 kbps
- Dienos/nakties režimasAuto(ICR)/Color/B/W
- WDR120 dB
- BLC / HLCYes / Yes
- Baltos spalvos balansasAuto, Natural, Street lamp, Outdoor, Manual, Regional Custom
- Stiprinimo valdymasAuto / Manual
- Triukšmo mažinimas3D NR
- Judesio aptikimas4 configurable areas
- Region of Interest (ROI)4 areas
- Vaizdo pasukimas0° / 90° / 180° / 270° (up to 2688×1520 resolution)
- Mirror / Privacy MaskingYes / 4 areas
- GarsasMIC Built-in, G.711a, G.711Mu, PCM, G.726
- Pavojaus įvykiaiNo SD card, SD error/full, network disconnection, IP conflict, illegal access, motion detection, video tamper, tripwire, intrusion, voltage, security exception, SMD
- Tinklo sąsajaRJ-45 (10/100 Base-T)
- Tinklo protokolaiIPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P
- SDK & APIYes
- SuderinamumasONVIF (Profile S/G/T), CGI
- Max Users6 users (36 Mbps total bandwidth)
- AtmintisFTP, SFTP, Micro SD card up to 256 GB
- Browser CompatibilityIE, Chrome, Firefox
- Valdymo programinė įrangaDSS, DMSS
- Mobilioji programaiOS, Android
- CybersecurityTrusted execution, X.509 certs, HTTPS, video encryption, syslog, WSSE, 802.1x, IP/MAC filtering, trusted boot, secure upgrade
- Maitinimo šaltinis12 VDC / PoE (802.3af)
- Energijos suvartojimasBasic: 2.1 W (DC), 2.5 W (PoE) Max: 4.4 W (DC), 5.2 W (PoE)
- Darbinė temperatūra–40 °C to +60 °C (–40 °F to +140 °F)
- Sandėliavimo temperatūra–40 °C to +60 °C (–40 °F to +140 °F)
- Drėgmė≤95%
- Apsauga nuo dulkių ir drėgmėsIP67
- Korpuso medžiagaMetal (core & cover), Plastic (decor ring)
- Matmenys99.1 × Φ121.9 mm (3.90 × Φ4.80 )
- Net Weight / Gross Weight0.46 kg (1.01 lb) / 0.65 kg (1.43 lb)
- SertifikataiCE-LVD (EN62368-1), CE-EMC (Directive 2014/30/EU), FCC Part 15 Subpart B, UL/CUL (UL62368-1 & CAN/CSA C22.2 No. 62368-1-14)
- Included / Optional AccessoriesOptional: PFA130-E (Junction Box), PFB205W-E (Wall Mount), PFA152-E (Pole Mount), PFA109 (Mount Adapter), PFB220C (Ceiling Mount), PFM321D (12VDC 1A Adapter), PFM900-E (Mount Tester), TF-P100 (MicroSD Card)
Tipas: dome IP kamera Prekės ženklas: Dahua Modelis: IPC-HDW2449T-S-IL-0280B Technologija: WizS..
