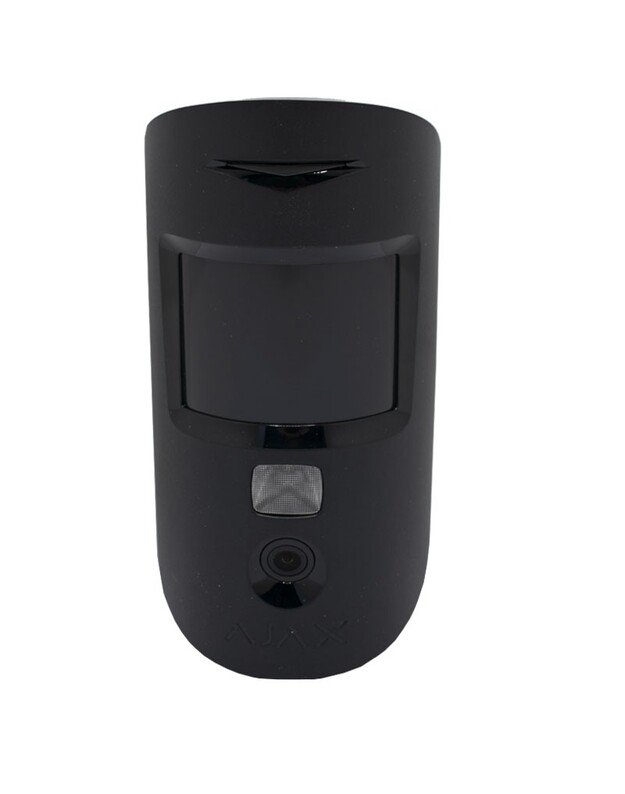

Belaidis judesio jutiklis su kamera Ajax MotionCam Jeweller PhOD 119281.310.BL1 (juodas, HDR)
Belaidis judesio jutiklis su kamera Ajax MotionCam Jeweller PhOD 119281.310.BL1 (juodas, HDR)
- Tipas: Bevielis judesio jutiklis su kamera
- Prekės ženklas: Ajax
- Modelis: MotionCam Jeweller phOD
- Spalva: Juoda
- Aptikimo nuotolis: iki 12 m
- Aptikimo kampas: 88,5°
- Gyvūnų ignoravimas: iki 20 kg
- Baterijos tipas: 2 x CR123A (iš anksto įdėtos), veikimo laikas: iki 4 metų
- Bendra informacija
- BendravimasJeweller proprietary wireless communication technology for transmitting alarms and events two-way communication, advanced anti-sabotage, block encryption with dynamic key, instant notifications, remote configuration via Ajax apps
- Jeweller frequency bands866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (depending on sales region)
- Maksimali efektyvi spinduliuojama galia (ERP)Up to 20 mW with automatic power control to reduce consumption and interference
- Radijo signalo moduliacijaGFSK
- Radijo signalo veikimo nuotolisUp to 1,700 m between detector and control panel or range extender in open space
- Šifruotas ryšysAll stored and transmitted data protected by block encryption with dynamic key
- Dažnių šuoliaiUses frequency hopping to prevent interception and jamming
- Wings ryšio technologijaProprietary wireless technology for photo verification transmission two-way communication, block encryption with dynamic key, advanced anti-sabotage, data package reloading, photo delivery check
- Wings frequency bands866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (depending on sales region)
- Wings radio signal rangeUp to 1,700 m between detector and control panel or range extender in open space
- AptikimasSensitive element: 1 PIR sensor
- Judėjimo aptikimo atstumasUp to 12 m when installed at 2.4 m height
- Judėjimo aptikimo kampaiHorizontal — 88.5°
- Judėjimo aptikimo greitisFrom 0.3 to 2.0 m/s lens direction should be perpendicular to the expected intrusion path
- Jautrumas3 levels adjustable by PRO or admin user in Ajax app
- Atsparumas naminių gyvūnų sukeltiems signalamsUp to 20 kg and up to 50 cm height
- Apsauga nuo klaidingų pavojaus signalųSmartDetect software algorithm with temperature compensation for −10 °C to +40 °C
- Nuotraukų patikraPhoto by alarm, photo on demand (disabled by default), photo by scenario (disabled by default), photo by schedule (OS Malevich 2.19 or later), photo by arming/disarming
- Nuotraukos raiška640 × 480 px, 320 × 240 px (default), 160 × 120 px adjustable in Ajax app
- HDR vaizdasImproves detail in bright and dark scenes available from firmware 16.59.36.5 or later
- IR apšvietimasFor night photography and low-light conditions
- Nuotraukos serijoje1–5 images at 320 × 240 px or 160 × 120 px 1–3 images at 640 × 480 px adjustable in Ajax app
- Nuotraukos pristatymo laikasUp to 7 s (160 × 120 px), up to 9 s (320 × 240 px), up to 20 s (640 × 480 px) when hub connected via Ethernet or 4G and signal strength 2–3 bars
- Installation recommendationsIndoor use only recommended installation height 2.4 m
- Apsauga nuo sabotažoTampering alarm, protection against spoofing (device authentication), communication loss detection within 36 s (depends on settings)
- Maitinimo šaltinis2 × CR123A batteries (pre-installed), type C
- Apskaičiuotas baterijos veikimo laikasUp to 4 years with Photo on demand disabled up to 3 years with Photo on demand enabled
- Operating voltage range4.2–6.2 V⎓
- Nominal operating voltage6 V⎓
- Budėjimo srovės suvartojimas30 μA at nominal voltage
- Maximum current consumption400 mA at nominal voltage
- Baterijos talpa1,550 mAh low battery voltage 4.71–5.00 V⎓ recovery voltage 5.06–5.36 V⎓ end-of-life voltage 3.8 V⎓ end-of-life capacity 150 mAh
- Battery manufacturerHuiderui or Panasonic
- KorpusasDimensions 135 × 70 × 60 mm weight 170 g
- Darbinė temperatūraFrom −10 °C to +40 °C
- Darbinė drėgmėUp to 75%
- Apsaugos klasėIP50
- SpalvaBlack or White
- Pilnas komplektasMotionCam (PhOD) Jeweller, SmartBracket mounting panel, installation kit, 2 × CR123A batteries (pre-installed), quick start guide
Tipas: Bevielis judesio jutiklis su kamera Prekės ženklas: Ajax Modelis: MotionCam Jeweller phOD..
