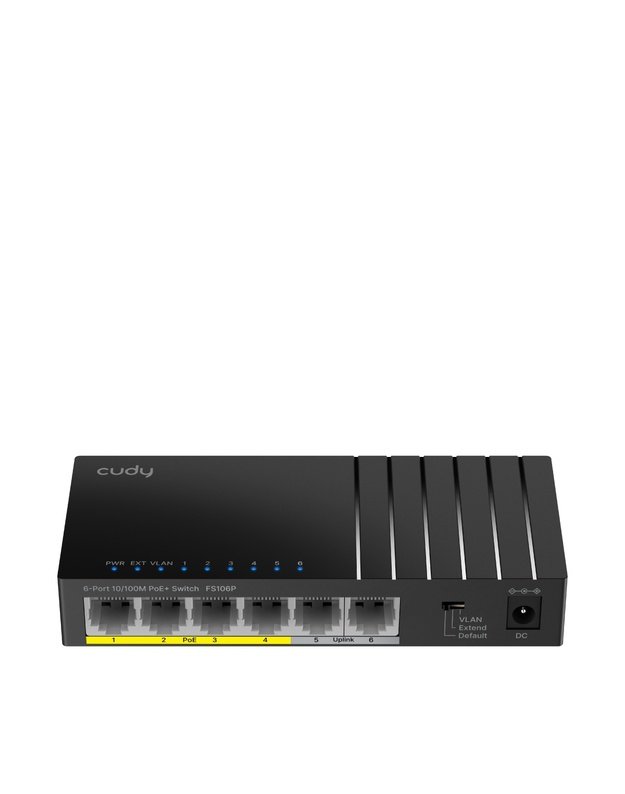

6 prievadų komutatorius CUDY FS106P (Nevaldomas)
6 prievadų komutatorius CUDY FS106P (Nevaldomas)
- Tipas: Komutatorius (nevaldomas)
- Prekės ženklas: CUDY
- Modelis: FS106P
- Korpusas: Plastikinis
- Prievadai: 6 x 100 Mbps RJ45 (4 x PoE)
- PoE galia: 36 W (iki 30 W per portą)
- Perdavimo talpa: 1.2 Gbps
- MAC adresų lentelė: 2048
- Maitinimas: 54 V 0.66 A DC
- Bendra informacija
- Modelio versijaFS106P 1.0
- Sąsajos10/100 Mbps RJ45 Ports 6, 10/100 Mbps RJ45 PoE Ports #1~#4
- Didžiausia galia viename PoE portuose30W
- PoE porto pastabosThe PoE ports comply with IEEE 802.3at/af standards.
- PoE PriorityIntelligent Power Management: Automatically disconnect the lastly powered device when power exceeds budget.
- Išplėstinio režimo prievadai#1~#4
- VLAN režimo prievadai#1~#4
- LEDPower, Link/ACT of Each Ethernet Port, Extend Status, VLAN Status
- Power InterfacesDC Jack
- Fiziniai mygtukaiVLAN/Default/Extend DIP Switch
- Physical Buttons NoteThe PoE Watchdog is on under the VLAN/Extend modes and will attempt to reboot the plugged-in but inactive client.
- NašumasMax Copper Speed and Distance Cat. 3 or higher cable: 100 meters at 10 Mbps, Cat. 5 or higher cable: 100 meters at 100 Mbps, Cat. 5e or higher cable: 250 meters at 10 Mbps
- Varinės greičio ir atstumo pastabos250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
- MAC adresų lentelė2048
- Maksimali komutavimo talpa1.2 Gbps
- Maksimalus persiuntimo greitis0.8928 Mpps
- Dideli kadrai2 KB
- Paketų buferis570 Kbit
- MaitinimasPower Methods DC, Power Input 54V⎓0.66A
- Power Adapter in the BoxInput: 100-240V~, 50/60Hz, Output: 54V⎓0.93A
- Maitinimo šaltinis36W
- Didžiausia galia neįtraukiant PoE2W
- Perjungimas802.3 Protocols 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3x Flow Control, 802.3af PoE, 802.3at PoE
- PatikimumasEMS IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV Air: 8kV, IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV RJ45: CM 4kV
- AplinkosaugaOperating Temperature: 0~40 ℃ (32~104 ℉), Storage Temperature: -40~70℃ (-40~158 ℉), Operating Humidity: 10~90% non-condensing, Storage Humidity: 10~95% non-condensing
- MechanikaDimension 138×61.5×24 mm, 5.43×2.42×0.94 inches
- Gaminio svoris88.0 g (3.1 oz.)
- Korpuso medžiagaPlastic
- MontavimasDesktop, Wall-mount
- Pakuotės turinysFS106P, Power Adapter, Power Cord, Installation Guide
Tipas: Komutatorius (nevaldomas) Prekės ženklas: CUDY Modelis: FS106P Korpusas: Plastikinis Pr..
