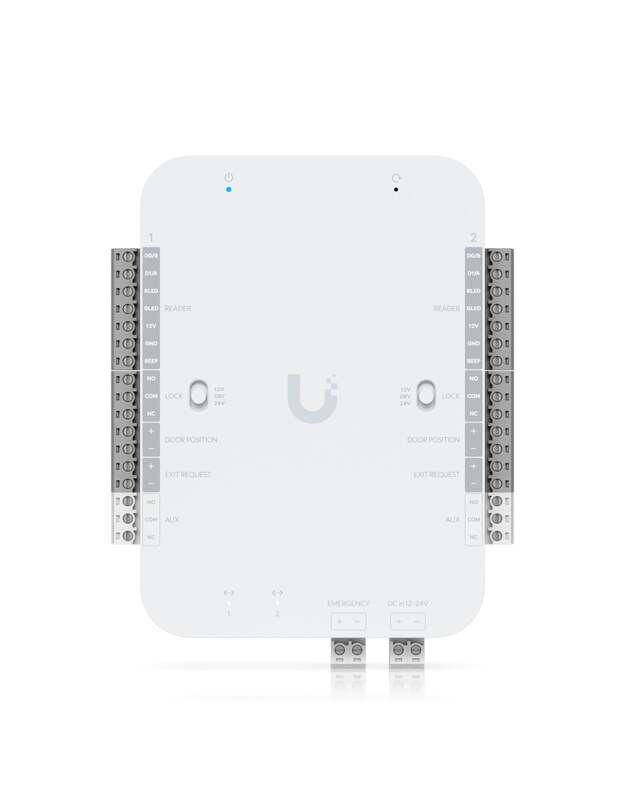

2 durų kontroleris Ubiquiti UA-Retrofit-Hub-2 (Wiegand, OSDP, 12/24V DC, 2x RJ45)
2 durų kontroleris Ubiquiti UA-Retrofit-Hub-2 (Wiegand, OSDP, 12/24V DC, 2x RJ45)
- Tipas: Durų prieigos kontroleris
- Prekės ženklas: Ubiquiti
- Modelis: UA-RETROFIT-HUB-2
- Durų skaičius: 2
- Ryšio protokolas: Wiegand, OSDP
- Maitinimas: 12/24 V DC
- Galia: 20 W
- Tinklo sąsaja: 2 × RJ45
- Darbinė temperatūra: nuo -10 °C iki +40 °C
- Grid overview
- Additional Inputs2 Additional Inputs
- Lock Terminals2 Lock Terminals
- AUX Terminals2 AUX Terminals
- Overview
- Matmenys140 x 120 x 45 mm (5.5 x 4.7 x 1.8" )
- Palaikomos durys2
- Maximum User Count10,000
- Įvesties terminalai(2) Third-party Wiegand Reader / UniFi Retrofit Reader (2) Door exit request (2) Door position (1) Emergency
- Maitinimo būdas12/24V DC
- Atitinka NDAA✓
- Mechanika
- Svoris420 g (14.8 oz)
- Dėklo / korpuso medžiagaPolycarbonate
- Tvirtinimo medžiagaSGCC steel
- MontavimasDin-rail (Included)
- Aparatūra
- Skaitmeninis įvestis(2) Third-party Wiegand Reader / UniFi Retrofit Reader (2) Door exit request (2) Door position (1) Emergency
- Sausa išėjimo relėLock: rated 30V DC, up to 1A Aux: rated 30V DC, up to 1A
- Maitinama išėjimo relė12V Lock: 12V DC, up to 1A 24V Lock: 24V DC, up to 0.5A
- Vidinis ir lauko naudojimasIndoor only
- Aplinkos darbinė temperatūra-10 to 40° C (14 to 104° F)
- Aplinkos veikimo drėgmė5 to 90% noncondensing
- Tinklo sąsaja(2) 10/100 MbE RJ45 ports
- MaitinimasDC 12/24V
- Maks. energijos suvartojimas50W
- LED indikatoriaiW/B < a href=" https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target=" _blank" rel=" noopener noreferrer" > Learn More< /a>
- Mygtukai(1) Factory reset (2) 12V/Dry/24V switch
- UA-Retrofit-Reader (250mA)18 UACC-Cable-DoorLockRelay length: 152.4 m (500 ft)
- UA-Lock-Electric (400mA)24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
- UA-Lock-Magnetic-540kg (500mA)24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
- UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
- Other locks (1A)24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
- SertifikataiCE, FCC, IC
- Software
- Management ApplicationAccess
Tipas: Durų prieigos kontroleris
Prekės ženklas: Ubiquiti
Modelis: UA-RETROFIT-HUB-2
Durų s..
