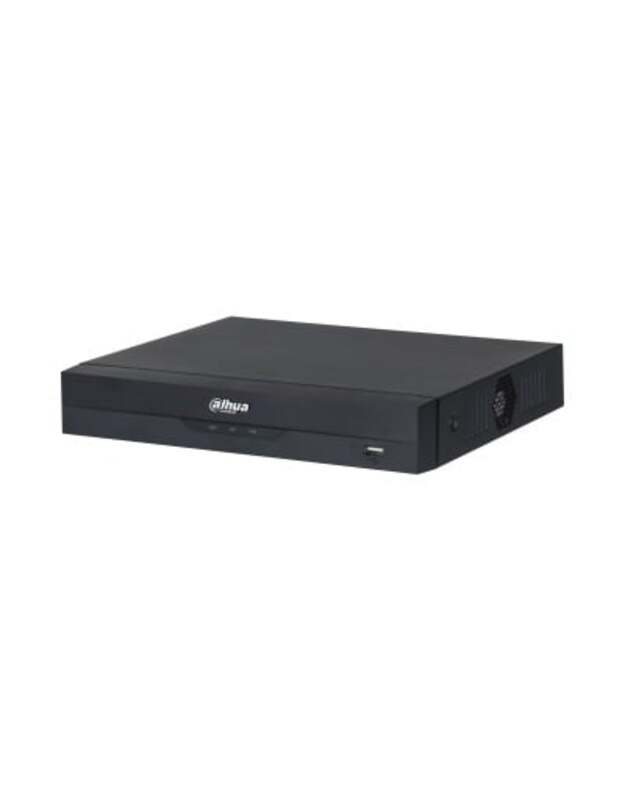

Tinklinis įrašymo įrenginys Dahua NVR NVR4108HS-8P-EI
Tinklinis įrašymo įrenginys Dahua NVR NVR4108HS-8P-EI
- Tipas: tinklinis įrašymo įrenginys (NVR)
- Prekės ženklas: Dahua
- Modelis: NVR4108HS-8P-EI
- Vaizdo formatas: H.265+
- Skiriamoji geba: iki 16 MP/kan.
- Sąsajos: HDMI, VGA, 2×RCA, 2×USB, RJ45 10/100/1000
- PoE kanalai: 8
- Maks. pralaidumas: 180/180/180 Mbps
- Atmintis: 1 HDD
- Maitinimas: 53 VDC
- Bendras
- Operacinė sistemaEmbedded Linux
- Operacinė sąsajaWeb, Local GUI
- Įrašymo įrenginio AI funkcijosFace detection, face recognition, perimeter protection, SMD
- Kameros AI funkcijosFace detection, face recognition, perimeter protection, SMD, ANPR, people counting, stereo analysis, heat map
- Perimeter Protection (Recorder)2 channels, 10 IVS rules per channel
- Perimeter Protection (Camera)All channels (8 targets/s)
- Veido atributaiGender, age group, glasses, expressions, face mask, beard
- Face Detection (Recorder)1 channel (up to 12 face images/s per channel)
- Face Detection (Camera)All channels (8 targets/s)
- Face Recognition DatabaseUp to 10 databases, 20,000 images total, 2.5 GB max. Includes name, gender, DOB, address, credential type/No., country/region, state
- Face Recognition (Recorder)8-channel FD by camera + FR by recorder, image: 12 face images/s 1-channel FD + FR by recorder, video: 12 face images/s
- Face Recognition (Camera)All channels (8 targets/s)
- SMD Plus įrašymo įrenginiu4 channels, filters human/motor vehicle, reduces false alarms (leaves, rain, lighting)
- SMD Plus by CameraAll channels (16 targets/s)
- Access Channels8 channels
- Network Bandwidth (AI off)256 Mbps incoming/recording/outgoing
- Network Bandwidth (AI on)180 Mbps incoming/recording/outgoing
- Supported Resolutions16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960p, D1, CIF
- Decoding Capability (AI off)2×16 MP@30fps, 2×12 MP@30fps, 4×8 MP@30fps, 4×6 MP@30fps, 6×5 MP@30fps, 8×4 MP@30fps
- Decoding Capability (AI on)1×16 MP@30fps, 2×12 MP@30fps, 3×8 MP@30fps, 3×6 MP@30fps, 4×5 MP@30fps, 6×4 MP@30fps, 8×1080p@30fps
- Vaizdo išvestis1 HDMI, 1 VGA (HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720)
- Daugiakanalis ekranas1st Screen: 1/4/8/9 2nd Screen: 1/4/8/9
- Trečiųjų šalių kamerų prieigaPanasonic, Sony, Hanwha, Axis, Pelco, Arecont, ONVIF, Canon
- Vaizdo glaudinimasSmart H.265+, H.265, Smart H.264+, H.264, MJPEG
- Garso glaudinimasG.711a, G.711u, PCM, G726
- Tinklo protokolaiHTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UPnP, SNMP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, Auto Registration
- Prieiga per mobiliuosius įrenginiusiOS, Android
- SuderinamumasONVIF 23.12 (Profiles T, S, G), CGI, SDK
- Browser CompatibilityChrome, IE9+, Firefox
- PlaybackUp to 8 channels
- Record ModesGeneral, motion detection, intelligent, alarm
- Backup MethodsUSB device, network
- Playback ModesInstant, general, event, tag, smart playback
- Bendroji signalizacijaMotion detection, privacy masking, video loss, scene change, PIR alarm, IPC external alarm
- Anomalijos signalizacijaNo disk, disk error, low space/quota, abnormal disk health, network disconnection, IP/MAC conflict, video loss/tampering, camera offline, audio detection
- Išmanioji signalizacijaFace detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis, heat map
- Signalizacijos sąsajaRecord, snapshot, IPC alarm output, audio, buzzer, log, preset, email
- Garso įvestis1-channel RCA
- Garso išvestis1-channel RCA
- HDD Interface1 SATA port, up to 20 TB (capacity depends on environment temperature)
- USB prievadai2 (1 front USB 2.0, 1 rear USB 2.0)
- HDMI1
- VGA1
- Tinklo prievadas1 (10/100/1000 Mbps RJ-45)
- PoE prievadai8 ports, 10/100 Mbps, IEEE 802.3 af/at
- Maitinimo šaltinis53 VDC, 1.812 A
- Energijos suvartojimas< 10 W (without HDD) PoE total max 78 W, max 25.5 W per port
- Grynasis svoris0.92 kg (2.03 lb)
- Bendras svoris2.05 kg (4.52 lb)
- Produkto matmenys260 × 232.7 × 47.6 mm (10.24 × 9.16 × 1.87 in)
- Pakuotės matmenys372 × 117 × 308 mm (14.65 × 4.61 × 12.13 in)
- Darbinė temperatūra–10 °C to +55 °C (14 °F to 131 °F)
- Sandėliavimo temperatūra–20 °C to +60 °C (–4 °F to 140 °F)
- Darbo drėgmė10%–93% RH, non-condensing
- SertifikataiFCC Part 15 Class A CE-EMC (EN 55032:2015+A1:2020, etc.) CE-LVD (EN 62368-1:2014)
Tipas: tinklinis įrašymo įrenginys (NVR) Prekės ženklas: Dahua Modelis: NVR4108HS-8P-EI Vaizdo ..
