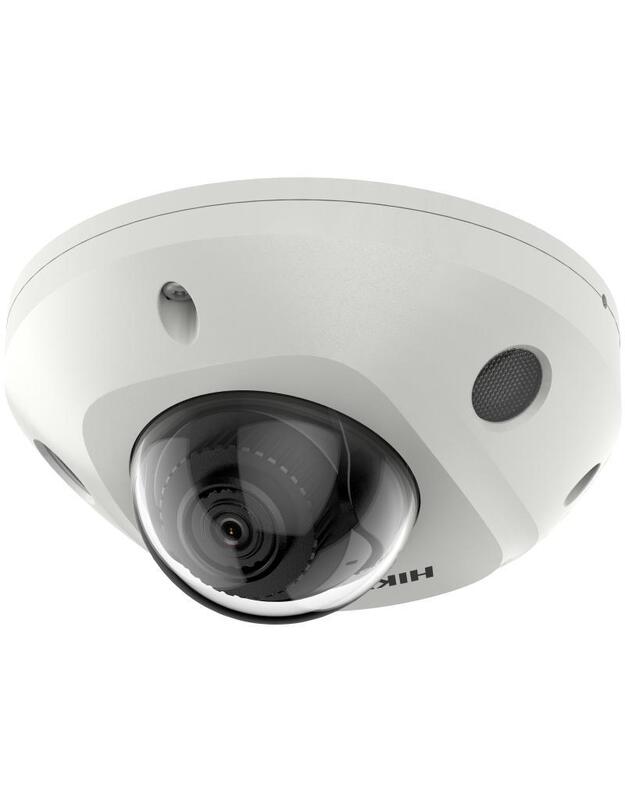

Hikvision mini dome DS-2CD2546G2-I F4 (balta, 4 MP, 30 m. IR, AcuSense)
Hikvision mini dome DS-2CD2546G2-I F4 (balta, 4 MP, 30 m. IR, AcuSense)
- MP (MegaPixel): 4 MP
- Objektyvas: 4 mm, horizontalus FOV: 82°
- Technologija: AcuSense
- Integruotas mikrofonas: Taip
- Naktinis pašvietimas: 30 m. IR
- Vieta microSD talpai: Taip, 512GB
- Darbo sąlygos: -30 °C iki 60 °C
- Saugos lygis: IP67
- Vaizdo suspaudimas: H.265+
- WiFi: Ne
- Laikiklis/bazė (papildomai): DS-1280ZJ-DM46
- Lauko/vidaus: Lauko
- Kamera
- Sensorius1/3 Progressive Scan CMOS
- Maks. rezoliucija2688 × 1520
- Min. apšvietimasColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Užrakto greitis1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Kampo keitimasPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
- Lęšis
- Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 102.7°, vertical FOV 55.2°, diagonal FOV 122.5°
4 mm, horizontal FOV 82.8°, vertical FOV 45.3°, diagonal FOV 97.7°
- Lęšio montavimasM12
- Rainelės tipasFixed
- DiafragamaF1.4
- Ryškumo gylis
2.8 mm: 1.6 m to ∞
4 mm: 2.1 m to ∞
- DORI
- DORI
2.8 mm:
D: 64 m
O: 26 m
R: 13 m
I: 6 m
4 mm
D: 77 m
O: 31 m
R: 16 m
I: 8 m
- Apšvietimas
- Papildomo apšviešimo tipasIR
- Papildomo apšvietimo diapazonasUp to 30 m
- Išmanus papildomas apšvietimasYes
- IR bangos ilgis850 nm
- Vaizdas
- Pagrindinis srautas
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Antrinis srautas
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Vaizdo suspaudimas
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Vaizdo bitų greitis32 Kbps to 8 Mbps
- H.264 tipasBaseline Profile/Main Profile/High Profile
- H.265 tipasMain Profile
- Bitų greičio kontrolėCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Garsas
- Garso tipas-IS/IWS: Mono sound
- Garso suspaudimas-IS/IWS: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso bitų greitis-IS/IWS: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Garso atrankos dažnis-IS/IWS: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Pašalinių garsų šalinimas-IS/IWS: Yes
- Internetas
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1 (except for -W model), QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Vidinė atmintis
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- KlientasiVMS-4200, Hik-Connect, Hik-Central
- Naršyklė
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Wi-Fi
- Šifravimo režimas-W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
- Wi-Fi Protocol
-W:
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
- Dažnio diapazonas-W: 2.4 GHz to 2.4835 GHz
- Kanalo dažnių juostos plotis-W: 20/40 MHz
- Moduliacija
-W:
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
- Perdavimo greitis
-W:
802.11b: 11 Mbps
802.11g: 54 Mbps
802.11n: up to 300 Mbps
- Belaidžio ryšio diapazonas-W: Up to 80 m (The performance varies based on actual environment)
- Nuotrauka
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaiRotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Diena/Naktis režimasDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Nuotraukų pagražinimasBLC, HLC, 3D DNR
- Sąsaja
- Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinė atmintisBuilt-in memory card slot, support microSD card, up to 512 GB
- Įmontuotas mikrofonasYes
- Garsas
-IS/IWS:
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Signalizacija
-IS/IWS:
1 input, 1 output (max. 12 VDC, 20 mA)
- Perkrovimo mygtukasYes
- Funkcijos
- Pagrindinės funckcijosMotion detection (human and vehicle targets classification), video tampering alarm, exception
- Išmaniosios funkcijos
Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
Scene change detection
- SąsajaUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
- Išmaniosios funkcijos
- Veido atpažinimasYes
- Pagrindinis
- Sistemos parametrai
-IS:
12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W
-IWS:
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W
- MedžiagaBase: aluminum, cover: plastic
- DydisØ110 mm × 57.4 mm (Ø 4.3 × 2.3 )
- Pakuotės dydis134 mm × 134 mm × 108 mm (5.3 × 5.3 × 4.3 )
- SvorisApprox. 380 g (0.8 lb.)
- Svoris su įpakavimuApprox. 620 g (1.4 lb.)
- Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Patvirtinimai
- RF
-W:
FCC ID (FCC Part 15.247(BT or 2.4G))
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G) EN 301489-17 V3.1.1(BT or 2.4G) EN 300328 V2.1.1(BT or 2.4G) EN 62311:2008(BT or 2.4G))
- EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
- Saugumas
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
LOA (IEC/EN 60950-1)
- Aplinkosauga
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
- Apsauga
IP67 (IEC 60529-2013)
IK8 (IEC 62262:2002)
