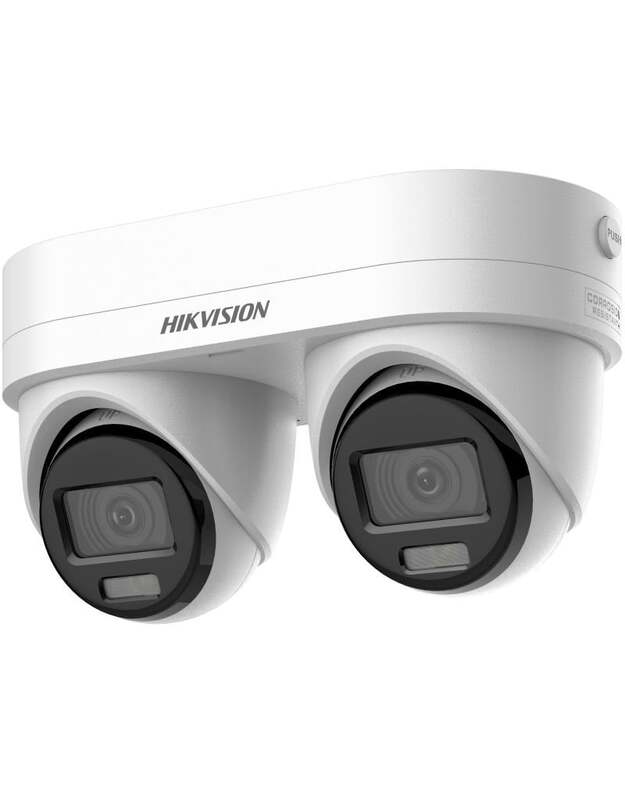

Hikvision Dome DS-2CD3343G2/X2-LIZSUY/SL F2.8/4mm (4MP, AcuSense, Darkfighter, LED 40m, IP67, PoE)

Prekės kodas: KIP3343G2X2IZSUYSL

Turimas kiekis: Prekė sandėlyje

2 nepriklausomi kanalai, 1 laidinė jungtis, 1 IP
2.8/4 mm vienoje kameroje, taškinis priartinimas
Aukštos kokybės vaizdas su 4 MP raiška
AcuSense: asmenų ir transporto priemonių klasifikavimas, pagrįstas giliuoju mokymusi
Išmanioji hibridinė šviesa: integruoti IR ir balti šviestuvai, 3 papildomo apšvietimo režimai
Krištolo skaidrumo garsas su dvigubu mikrofonų masyvu
Aiškus vaizdas esant stipriam foniniam apšvietimui dėl 120 dB tikrosios WDR technologijos
Atsparus korozijai dizainas (NEMA 4X), didesnis patikimumas
Efektyvi H.265+ vaizdo glaudinimo technologija
Atspari vandeniui ir dulkėms (IP67)
Aktyvi stroboskopinė šviesa ir garsinis signalas įsibrovėliams atbaidyti

€816²⁵ su PVM

Turite klausimų apie šią prekę? Klauskite

Patvirtinimai
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7
AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013
SaugumasCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017

Garsas
Garso bitų dažnis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
Pašalinių garsų šalinimasYes

Camera
Kampo keitimasChannel 1: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°, Channel 2: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Diena& NaktisChannel 1: IR cut filter, Channel 2: IR cut filter
Vaizdo jutiklisChannel 1: 1/3 Progressive Scan CMOS, Channel 2: 1/3 Progressive Scan CMOS
Didžiausia raiškaChannel 1: 2688 × 1520, Channel 2: 2688 × 1520
Minimalus apšvietimasChannel 1: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR, Channel 2: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Užrakto greitis1/3 s to 1/100,000 s

DORI
DORIChannel 1:2.8 mm, D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m4 mm, D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 mChannel 2:2.8 mm, D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m4 mm, D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m

Išmaniosios funkcijos
Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing

Bendroji informacija
Matmenys199.9 mm × 120.1 mm × 97.2 mm (7.87 × 4.73 × 3.83 )
Flashing LightWhite Light
Pagrindinės funkcijosHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
MedžiagaMetal
Pakuotės dydis305 mm × 162 mm × 165 mm (12.01 × 6.38 × 6.5 )
Galia12 VDC ± 25%, 1.42 A, max. 17 W,two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
SvorisApprox. 1215 g (2.7 lb.)
Svoris su įpakavimuApprox. 1582 g (3.5 lb.)

Sąsaja
Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
GarsasBuilt-in Microphone: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Integruotas garsiakalbis 1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 110 dB.
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Perkrovimo mygtukasYes

Objektyvas
DiafragmaF1.6
Ryškumo gylis2.8 mm: 1.2 m to ∞4 mm: 1.5 m to ∞
Focal Length & FOVChannel 1: 2.8 mm, horizontal FOV 99.3°, vertical FOV 52.9°, diagonal FOV 120.2°4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0°Channel 2: 2.8 mm, horizontal FOV 99.3°, vertical FOV 52.9°, diagonal FOV 120.2°4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0°
Rainelės tipasFixed
Objektyvo tvirtinimasØ14
Objektyvo tipasChannel 1: Varifocal lens, motorized lens, 2.8 mm and 4 mm, Channel 2: Varifocal lens, motorized lens, 2.8 mm and 4 mm

Tinklas
APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
KlientasiVMS-4200,Hik-Connect,Hik-Central
Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
NaršyklėPlug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Vaizdas
Bitų dažnio valdymasCBR,VBR
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Pagrindinis srautasChannel 1 & Channel 2:50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz:30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Region of Interest (ROI)1 fixed region for main stream and sub-stream and third Stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Antrinis srautasChannel 1 & Channel 2:50 Hz: 25 fps (768 × 432,640 × 360)60 Hz: 30 fps (768 × 432,640 × 360)
Tikslinis apkarpymasYes
Trečias srautasChannel 1 & Channel 2:50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
Vaizdo bitų dažnis32 Kbps to 16 Mbps
Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
