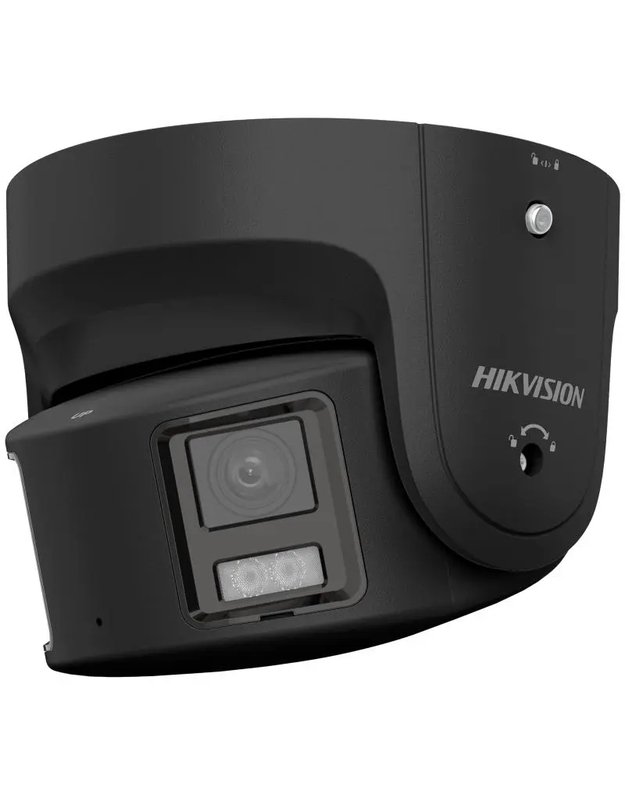

Hikvision dome DS-2CD2387G2P-LSU/SL(C) F4 (juoda, 8 MP, 30 m. LED, ColorVu)

Prekės kodas: KIP2387G2PLSUSLCF4B

Turimas kiekis: Prekė sandėlyje

€567⁴⁷ su PVM

Turite klausimų apie šią prekę? Klauskite

Vaizdas
Pagrindinis srautas
When WDR is On:
50 Hz: 12.5 fps (5120 × 1440)
60 Hz: 15 fps (5120 × 1440)
When WDR is Off:
50 Hz: 20 fps (5120 × 1440)
60 Hz: 20 fps (5120 × 1440)
Antrinis srautas
When WDR is On:
50 Hz: 12.5 fps (1920 × 536, 960 × 272)
60 Hz: 15 fps (1920 × 536, 960 × 272)
When WDR is Off:
50 Hz: 20 fps (1920 × 536, 960 × 272)
60 Hz: 20 fps (1920 × 536, 960 × 272)
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Vaizdo bitų greitis32 Kbps to 16 Mbps
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Bitų greičio kontrolėCBR,VBR
SVCH.264 and H.265 encoding
ROI1 fixed region(s) for main stream

Garsas
Garso tipasMono sound
Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimasYes

Internetas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR,
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
KlientasiVMS-4200,Hik-Connect,Hik-Central
Naršyklė
Plug-in required live view: IE 10, IE 11 ,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
Local service: Chrome 57.0+, Firefox 52.0+

Nuotrauka
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaisaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Diena/Naktis režimasDay,Night,Auto,Schedule
WDR130 dB
SNR≥ 52 dB
Nuotraukų pagražinimasBLC,HLC,3D DNR

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
Įmontuotas mikrofonasYes
Įmontuotas garsiakalbisMax. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
Garsas
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija1 input, 1 output (max. 24 VDC, 1 A)
Perkrovimo mygtukasYes

Funkcijos
Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Išmaniosios funkcijos
Perimetro apsaugaLine crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))

Pagrindinis
Sistemos parametrai
12 VDC ± 25%, 0.79 A, max. 9.5 W,Ø5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W
MedžiagaBase: metal, cover: metal
Dydis
Ø155 mm × 155.3 mm (Ø6.1 × 6.1\ )
Pakuotės dydis230 mm × 230 mm × 230 mm (9 × 9 × 9 )
Approx. 1110 g (2.4 lb.)
Svoris su įpakavimuApprox. 1900 g (4.2 lb.)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijosAnti-flicker, heartbeat, password reset via email, password protection, one-key reset
Flashing LightYes

Patvirtinimai
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Saugumas
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013
