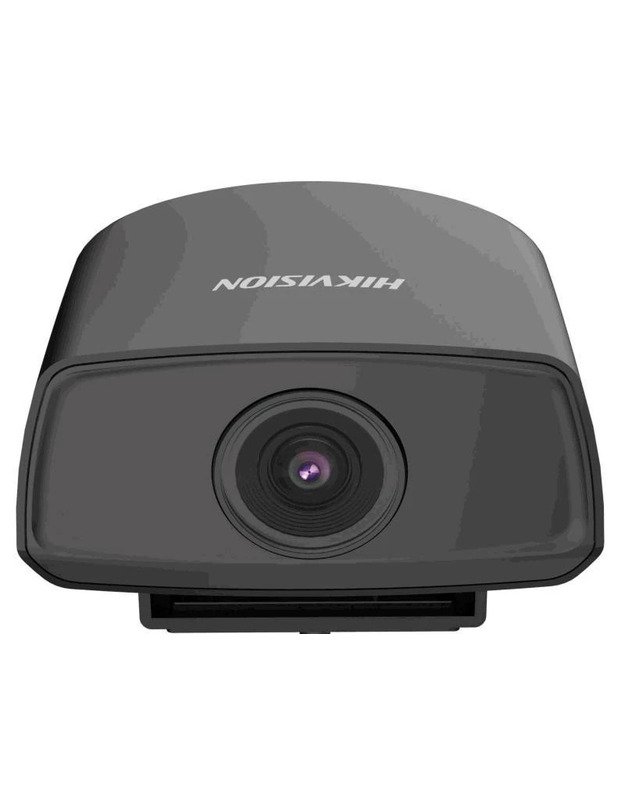

Hikvision automobilinė dome kamera DS-2XM6222G1-ID(AE) F2.8
Hikvision automobilinė dome kamera DS-2XM6222G1-ID(AE) F2.8
- 2MP
- 2.8/4/6 mm fiksuotas objektyvas
- 120 dB WDR
- IP68
- IR pašvietimas iki 30m
- Kamera
- Užrakto greitis1/3 s to 1/100,000 s
- P/N
PAL: 25fps
NTSC: 30fps
- Day & NightIR Cut Filter
- Kampo keitimasPan: -20° to 0°, Tilt: -15° to 25°
- Baltos spalvos balansas
Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light
Support manual/automatic white balance adjustment.
- Lęšis
- FOV2.8mm/4mm/6mm
- Focal Length & FOV
2.8mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°
4mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104°
6mm: horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
- Lęšio montavimasM12
- FokusavimasManual focus
- Max. Aperture2.8/4/6mm : F1.6
- Apšvietimas
- Papildomo apšviešimo tipasInfrared fill light lamp
- Išmanus papildomas apšvietimasSupport
- IR bangos ilgis850 nm
- IR distancijaUp to 10 m
- Vaizdas
- Maks. rezoliucija1920 x 1080
- Pagrindinis srautas
50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
- Antrinis srautas
50Hz: 25 fps (704 x 576, 640 x 480, 352 x 288, 320 x 240)
60Hz: 30 fps (704 x 576, 640 x 480, 320 x 240)
- Trečias srautas
50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
- Vaizdo suspaudimas
Main stream: H.264, H.265, H.264+, H.265+
Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+
Third stream: H.264, H.265 ,H.264+, H.265+
- Vaizdo bitų greitis256 Kbps to 12 Mbps
- H.264 tipasBaseLine Profile/Main Profile/High Profile
- H.265 tipasMain Profile
- Bitų greičio kontrolėConstant Bit Rate, Variable Bit Rate
- Srauto tipasMain stream, sub stream, third stream
- Scalable Video Coding (SVC)
H.264 and H.265 encoding
- Region Of Interest (ROI)Support 2 fixed region for (main/sub) stream
- Garsas
- Garso suspaudimasG711U, G711A, G726, AAC, G722, PCM, AAC
- Garso bitų greitis64 Kbps
- Garso atrankos dažnis16 kHz
- Pašalinių garsų šalinimasSupport
- Internetas
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, Email ,RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, ICMP 802.1X, QoS, IPv6, Bonjour, ISUP5.0
- Tiesioginis vaizdo žiūrėjimasUp to 8 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User ManagementUp to 16 users, 3 levels: Administrator, Operator and User
- NaršyklėIE8+, Chrome45+, Edge41+, Firefox45+
- Nuotrauka
- Wide Dynamic Range (WDR)120 dB
- Nuotraukos nustatymaiSupport rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.
- Diena/Naktis režimasDay/Night/Auto/Schedule
- SNR> 50 dB
- Nuotraukų pagražinimasBLC,HLC, 3D DNR
- Privatumo kaukėEnables configuration, and supports drawing of up to 4 areas
- Nuotraukos perdangaSupport image overlay, uploading images, enabling, coordinates, etc.
- Tikslinis apkarpymasSupport (only the third stream)
- Backlight Compensation(BLC)Support up, down, left, right, center and custom backlight compensation adjustment
- Sąsaja
- Vaizdo išvestisNot supported
- Interneto sąsaja
-ID: 1 RJ45 10M/100M self-adaptive Ethernet port
-IM/ND, IDM: 1 four-core M12 aviation plug
- SD Card StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
- Perkrovimo mygtukasSupport
- Interface TypeInterpolate
- Funkcijos
- Susiejimo metodasUpload to FTP, notify monitoring center, send email, trigger recording
- Pagrindinės funckcijosMotion detection, video tampering alarm
- Išmaniosios funkcijos
Line crossing detection,
Intrusion detection,
Region entrance detection,
Region exiting detection,
Unattended baggage detection,
Object removal detection,
Object detection: detects faces and upload images
Scene change detection, defocus detection
- Pagrindinis
- Product DimensionCamera: Φ 78.8 mm × 81.6mm x 63.8 mm (3.1″ × 3.2″ x 2.5″)
- Sistemos parametrai
PoE: 0.30 A to 0.20 A, max: 7.5 W
DC: 0.83 A to 0.21 A, max: 7.5 W
- Pakuotės dydis174 mm × 111 mm × 101mm (6.85″ × 4.37″ × 3.98″)
- Product WeightApprox. 330 g (0.7 lb.)
- Darbo sąlygos-30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
- KalbaEnglish, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
- Pagrindinės funkcijosAnti-flicker, heartbeat, mirror
- Programinės įrangos nustatymas iš naujoSupport
- Maitinimas
-ID: 9-36V& PoE (802.3af, 36 V to 57 V)
-IDM: 9-36V& PoE (802.3af, 36 V to 57 V)
-IM/ND: PoE (802.3af, 36 V to 57 V)
- Maitinimas
-ID: Ø 5.5 mm coaxial power plug, DC power supply, or PoE power supply
-IM/ND: four-core M12 aviation plug, PoE power supply
- Cable Length50 cm
- Patvirtinimai
- ClassClass B
- EMCFCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014)
- SaugumasUL (UL 60950-1) CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013) CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- AplinkosaugaCE-RoHS (2011/65/EU)
- Electrical Safety ProtectionIP68 (IEC 60529-2013)
- AutomatikaEN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010) EN45545 (EN 45545-2:2013+A1:2015) E-MARK (ECE R10)
2MP2.8/4/6 mm fiksuotas objektyvas120 dB WDRIP68IR pašvietimas iki 30m..
